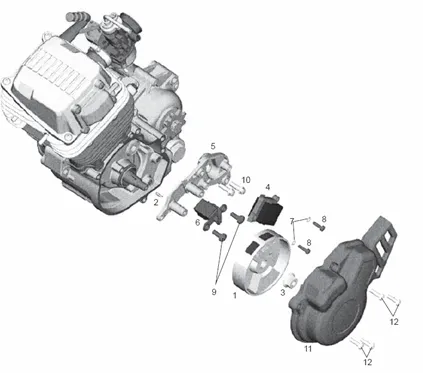

Moteur : 12 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_12.png)
1 |
840257-K-ROTOR DERBI MINIMOTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
2 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
3 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 1 |
||||||
|
4 |
840258 - K-ESTATOR More informationQuantity required : 1 |
||||||
|
5 |
840737 - K-SOPORTE More informationQuantity required : 1 |
||||||
|
6 |
584581 - K-PICK-UP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
7 |
WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964 More informationQuantity required : 1 |
||||||
|
8 |
709718 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
9 |
SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
|
11 |
840304 - K-TAPA More informationQuantity required : 1 |
||||||
|
12 |
840548-SCREW More informationQuantity required : 1 |
