Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

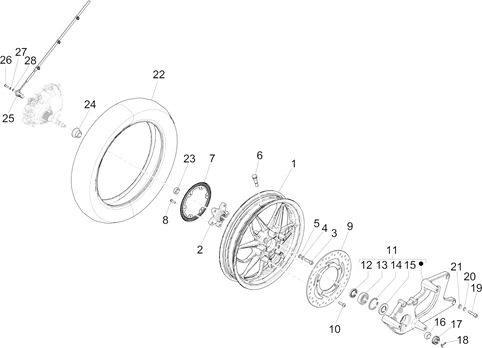

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/770/Medley_125_4T_ie_ABS_2016_(APAC)_04.12.PNG)
1 |
1C001606R - ROUE ARR. 14" X 2.5" More informationQuantity required : 1 |
||||||
|
1 |
1C002527R - ROUE ARR. 14" X 2.50" More informationQuantity required : 1 |
||||||
|
2 |
1C000945 - MUYEU ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
3 |
SCREW - 8X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015792 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
5 |
003058 - RONDELLE S00305800 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
6 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/7/9/img/139579.jpg)
7 |
1A004917 - CODEUR COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
8 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/3/1/img/90131.jpg)
9 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" 125 MEDLEY, 350 BEVERLY -667032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 5 |
||||||
|
11 |
1A006223 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
|
12 |
1A005943 - JOINT D'ÉTANCHÉITÉ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
13 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
14 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
|
15 |
1A005942 - JOINT D'ÉTANCHÉITÉ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
16 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
17 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
17 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/7/3/8/img/82738.jpg)
18 |
5A000046 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/6/4/img/139564.jpg)
19 |
1A004486 - VIS M8X24 More informationQuantity required : 2 |
||||||
|
20 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
21 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
|
22 |
1C001587 - PNEU 110/80-14"(DITTA CHENG SHIN/MAXXIS) More informationQuantity required : 1 |
||||||
|
23 |
1C002175 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
24 |
1C002344 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
1D0013515 - DETECTEUR ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
26 |
880285 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/5/3/8/img/90538.jpg)
27 |
669282 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
28 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
