Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

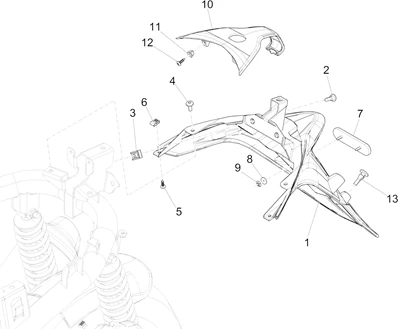

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/770/Medley_125_4T_ie_ABS_2016_(APAC)_02.37.PNG)
1 |
1B0017080000C - PROTECTION AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/7/6/img/127676.jpg)
7 |
5A000498 - CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/6/7/3/img/127673.jpg)
8 |
5A000387 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/0/6/img/140406.jpg)
9 |
5A000388 - PLAQUE More informationQuantity required : 2 |
||||||
|
10 |
1B001704 - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
|
10 |
1B001704000BT - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
|
10 |
1B001704000DE - COUVRE FLANC More informationQuantity required : 1 |
||||||
|
10 |
1B001704000DU - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
|
10 |
1B001704000HI - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/1/0/img/139810.jpg)
10 |
1B001704000ND - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
|
10 |
1B001704000S5 - COUVRE FLANC ARR. More informationQuantity required : 1 |
||||||
|
10 |
COUVRE FLANC ARR. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
11 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
|
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
13 |
672244 More informationQuantity required : 2 |
