Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (APAC)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

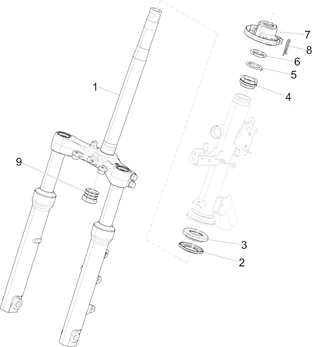

Suspensions - roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTÉE DIR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/770/Medley_125_4T_ie_ABS_2016_(APAC)_04.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/5/6/img/162856.jpg)
1 |
1C002901 - FOURCHETTE COMPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/9/img/127529.jpg)
2 |
STEERING LOWER PROTECTION RING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -1C001628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/2/8/img/127528.jpg)
3 |
LOWER HEADSET "PIAGGIO GENUINE PART" 50 LIBERTY IGET 2015>, 125 LIBERTY, MEDLEY, VESPA PRIMAVERA, SPRINT -1C0016085 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
4 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/4/img/67264.jpg)
5 |
582787 - RONDELLE. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
6 |
NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094 More informationQuantity required : 1 |
||||||
7 |
1B002074 - JOINT CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/0/9/img/90809.jpg)
8 |
672491 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/2/5/3/img/92253.jpg)
9 |
781276 - BOUCHON More informationQuantity required : 1 |
