Vehicle Exploded View - APRILIA LEONARDO 250 ST (eng.Yamaha) 01
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

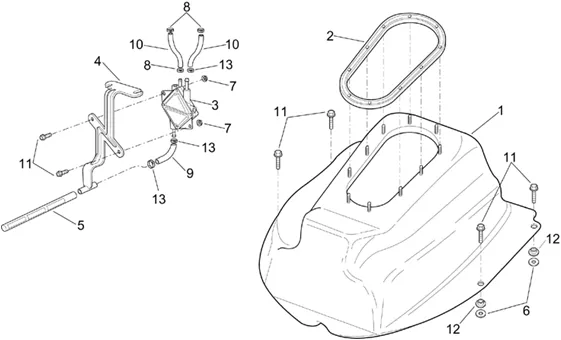

Chassis : 28.24 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/252/Leonardo_250_ST_(eng.Yamaha)_01_28.24.PNG)
1 |
AP8139315 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
AP8120917 - JOINT RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/2/img/45162.jpg)
3 |
FUEL PUMP OEM PIAGGIO APRILIA 125 SCARABEO 1999 > 2004, LEONARDO 1996 > 2001, MOJITO 1999 > 2001, 250 LEONARDO 1999 > 2004, 650 STARK 1995 > 1999 (ENGINE ROTAX)-AP8102408 More informationQuantity required : 1 |
||||||
|
4 |
AP8139728 - SUPPORT POMPE ESSENCE; More informationQuantity required : 1 |
||||||
|
5 |
Filtre essence |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
6 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
8 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 3 |
||||||
|
9 |
AP8144232-HOSE More informationQuantity required : 1 |
||||||
|
10 |
AP8144205-HOSE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
11 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
12 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 4 |
||||||
|
13 |
HOSE CLAMP HOSE (9X11. 9) OEM PIAGGIO COMMON A LA RANGE-AP8201358 More informationQuantity required : 3 |
