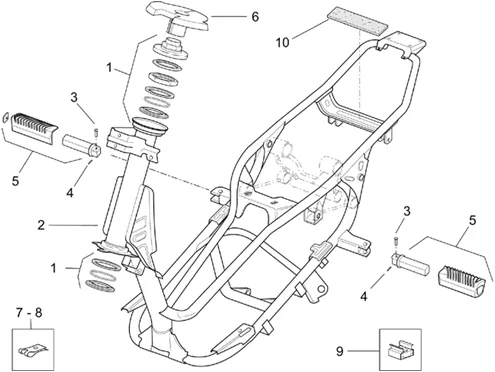

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/252/Leonardo_250_ST_(eng.Yamaha)_01_28.01.PNG)
1 |
AP8123685-SERIE STEERING COMPLETE * More informationQuantity required : 1 |
||||||
|
2 |
AP8146576 - CHASSIS AVEC CATAPHORESE; More informationQuantity required : 1 |
||||||
|
3 |
AP8135677-PIVOT REST-FEET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
4 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 2 |
||||||
|
5 |
AP8135975 - R-PIED PASS.-PAIRE More informationQuantity required : 1 |
||||||
|
6 |
AP8117210 - PROTECTION BR?LURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
9 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 2 |
||||||
|
10 |
AP8117040-EPONGE ADHÉS. BLACK More informationQuantity required : 1 |
