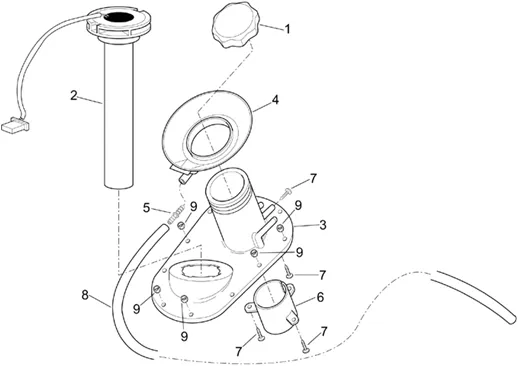

Chassis : 28.23 SONDE NIVEAU ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/252/Leonardo_250_ST_(eng.Yamaha)_01_28.23.PNG)
1 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
Sonde niveau essence; |
||||||
|
3 |
AP8102736 - BRIDE RESERVOIR ESS. More informationQuantity required : 1 |
||||||
|
4 |
AP8220465-RUBBER COLLECTE FUEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
5 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/8/6/7/img/51867.jpg)
6 |
AP8158837 - ARR?T; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
||||||
|
8 |
AP8120955-TUBO GREY 3X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 10 |
