Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04 APRILIA

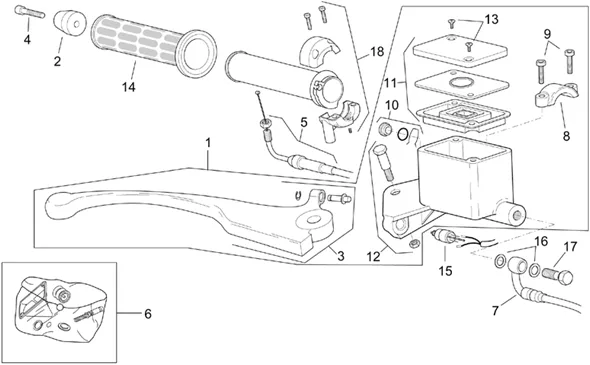

Chassis : 28.19 MAÎT. CYL. FREIN AV
Maît. cyl. frein AV
Search
AP8113708 - MA?T. CYL. FREIN AV

1
P2R reference P2R reference 45995
Maker reference Maker reference AP8113708

AP8113708 - MA?T. CYL. FREIN AV

More information

Quantity required : 1

AP8202188 - MASSE ANTIVIBRATILE GUIDON;

2
P2R reference P2R reference 55444
Maker reference Maker reference AP8202188

AP8202188 - MASSE ANTIVIBRATILE GUIDON;

More information

Quantity required : 1

AP8218480 - LEVIER FREIN;

3
P2R reference P2R reference 56689
Maker reference Maker reference AP8218480

AP8218480 - LEVIER FREIN;

More information

Quantity required : 1

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283

4
P2R reference P2R reference 50976
Maker reference Maker reference AP8152283

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283

More information

Quantity required : 2

AP8114368 - CABLE GAZ;

5
P2R reference P2R reference 46133
Maker reference Maker reference AP8114368

AP8114368 - CABLE GAZ;

More information

Quantity required : 1

AP8213464 - KIT REVISION POMPE;

6
P2R reference P2R reference 56470
Maker reference Maker reference AP8213464

AP8213464 - KIT REVISION POMPE;

More information

Quantity required : 1

AP8113707 - TUBE FREIN AV

7
P2R reference P2R reference 45994
Maker reference Maker reference AP8113707

AP8113707-TUBE BRAKE FRONT

More information

Quantity required : 1

AP8113637 - CAVALIER LEVIER FREIN

8
P2R reference P2R reference 45982
Maker reference Maker reference AP8113637

AP8113637-CAVALIER LEVER BRAKE

More information

Quantity required : 1

AP8213299 - VIS CALOTTE

9
P2R reference P2R reference 72207
Maker reference Maker reference AP8213299

AP8213299-SCREW CALOTTE

More information

Quantity required : 2

AP8213455 - HUBLOT POMPE FREIN

10
P2R reference P2R reference 72211
Maker reference Maker reference AP8213455

AP8213455-HUBLOT PUMP BRAKE

More information

Quantity required : 1

AP8249191 - COUVERCLE POMPE;

11
P2R reference P2R reference 58746
Maker reference Maker reference AP8249191

AP8249191-COVER PUMP

More information

Quantity required : 1

AP8218483 - GOUJON DE LEVIER CPL.;

12
P2R reference P2R reference 56692
Maker reference Maker reference AP8218483

AP8218483 - GOUJON DE LEVIER CPL.;

More information

Quantity required : 1

AP8213400 - VIS COUVERCLE POMPE

13
P2R reference P2R reference 72209
Maker reference Maker reference AP8213400

AP8213400-SCREW COVER PUMP

More information

Quantity required : 2

Couple manettes, gris;

14
P2R reference P2R reference
Maker reference Maker reference AP8118606

Couple manettes, gris;

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

15
P2R reference P2R reference 67189
Maker reference Maker reference 580953

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

More information

Quantity required : 1

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

16
P2R reference P2R reference 71283
Maker reference Maker reference AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

More information

Quantity required : 4

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

17
P2R reference P2R reference 71282
Maker reference Maker reference AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

More information

Quantity required : 2

AP8118548 - COMMANDE GAZ SANS POIGNEE;

18
P2R reference P2R reference 46354
Maker reference Maker reference AP8118548

AP8118548 - COMMANDE GAZ SANS POIGNEE;

More information

Quantity required : 1
