Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.02 BÉQUILLE

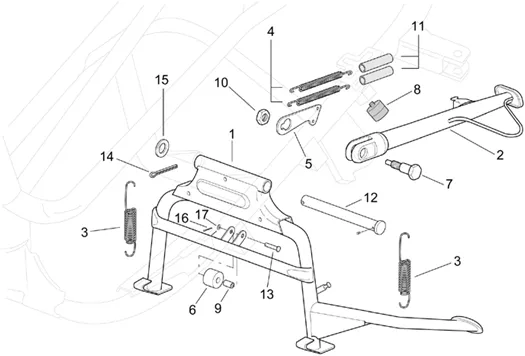

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/253/Leonardo_250_(eng.Minarelli)_02-04_28.02.PNG)
1 |
AP8146688-CENTRE STAND More informationQuantity required : 1 |
||||||
|
2 |
AP8146145 - BEQUILLE LATERALE CAT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
3 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
4 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/5/0/img/46950.jpg)
5 |
PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/0/2/img/46602.jpg)
6 |
ROULETTE DE SIDE STAND OEM PIAGGIO 125 SCARABEO 1999 > 2004-AP8120338 More informationQuantity required : 1 |
||||||
|
7 |
AP8152295 - VIS BEQUILLE LAT. More informationQuantity required : 1 |
||||||
|
8 |
AP8144509-BUFFER FIN DE COURSE STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/7/img/46717.jpg)
9 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
10 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/2/img/49632.jpg)
11 |
RUBBER SPRING DE STAND OEM APRILIA 125 LEONARDO 1996 > 2004-AP8144152 More informationQuantity required : 2 |
||||||
|
12 |
AP8121305-SHAFT OF STAND More informationQuantity required : 1 |
||||||
|
13 |
AP8121319 - PIVOT; More informationQuantity required : 1 |
||||||
|
14 |
AP8101747-GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
15 |
WASHER PLATE (15X28X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150208 More informationQuantity required : 1 |
||||||
|
16 |
AP8101606 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
17 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
