Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Minarelli) 02-04 APRILIA

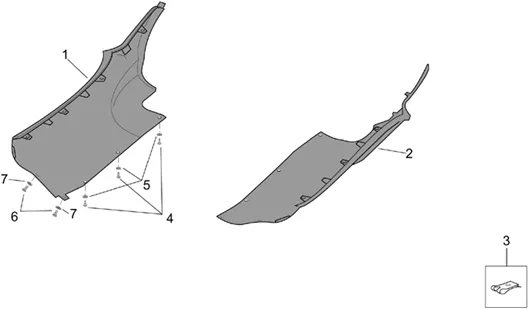

Chassis : 28.13 CARROSSERIE CENTRALE-SOUS-REP-PIEDS
Carrosserie centrale-Sous-rep-pieds
Search
AP8158715 - FLANC SS-REP-P.D ROUGE C.;

1
P2R reference P2R reference 51801
Maker reference Maker reference AP8158715

AP8158715 - FLANC SS-REP-P.D ROUGE C.;

More information

Quantity required : 1

AP8158723 - FIANCATA SOTTOPIANALE DX GRIG.

1
P2R reference P2R reference 51806
Maker reference Maker reference AP8158723

AP8158723 - FIANCATA SOTTOPIANALE DX GRIG.

More information

Quantity required : 1

AP8158728 - FLANC SS-REP-D BLEU;

1
P2R reference P2R reference 51809
Maker reference Maker reference AP8158728

AP8158728 - FLANC SS-REP-D BLEU;

More information

Quantity required : 1

FIANCATA SOTTOPIAN.DX NERO AP.

1
P2R reference P2R reference
Maker reference Maker reference AP8158732

FIANCATA SOTTOPIAN.DX NERO AP.

AP8168684 - FLANC SS-REP.PI. D, GRIS;

1
P2R reference P2R reference 53322
Maker reference Maker reference AP8168684

AP8168684 - FLANC SS-REP.PI. D, GRIS;

More information

Quantity required : 1

AP8168693 - FLANC SS-REP-D ROUGE;

1
P2R reference P2R reference 53330
Maker reference Maker reference AP8168693

AP8168693 - FLANC SS-REP-D ROUGE;

More information

Quantity required : 1

AP8158711 - FLANC SS-REP-P.G ROUGE C.;

2
P2R reference P2R reference 51799
Maker reference Maker reference AP8158711

AP8158711 - FLANC SS-REP-P.G ROUGE C.;

More information

Quantity required : 1

AP8158724 - FLANC SS-REP.PI. G, GRIS;

2
P2R reference P2R reference 51807
Maker reference Maker reference AP8158724

AP8158724 - FLANC SS-REP.PI. G, GRIS;

More information

Quantity required : 1

AP8158727 - FLANC SS-REP-P.G BLEU;

2
P2R reference P2R reference 51808
Maker reference Maker reference AP8158727

AP8158727 - FLANC SS-REP-P.G BLEU;

More information

Quantity required : 1

AP8158733 - FLANC SS-REP-P.G NOIR;

2
P2R reference P2R reference 51811
Maker reference Maker reference AP8158733

AP8158733 - FLANC SS-REP-P.G NOIR;

More information

Quantity required : 1

AP8168685 - FLANC SS-REP.PI. G, GRIS;

2
P2R reference P2R reference 53323
Maker reference Maker reference AP8168685

AP8168685 - FLANC SS-REP.PI. G, GRIS;

More information

Quantity required : 1

AP8168694 - FLANC SS-REP-P.G ROUGE;

2
P2R reference P2R reference 53331
Maker reference Maker reference AP8168694

AP8168694 - FLANC SS-REP-P.G ROUGE;

More information

Quantity required : 1

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

3
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 10

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

4
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 3

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

5
P2R reference P2R reference 71844
Maker reference Maker reference AP8150248

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

More information

Quantity required : 3

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

6
P2R reference P2R reference 71881
Maker reference Maker reference AP8150425

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

More information

Quantity required : 4

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

7
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 4
