Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

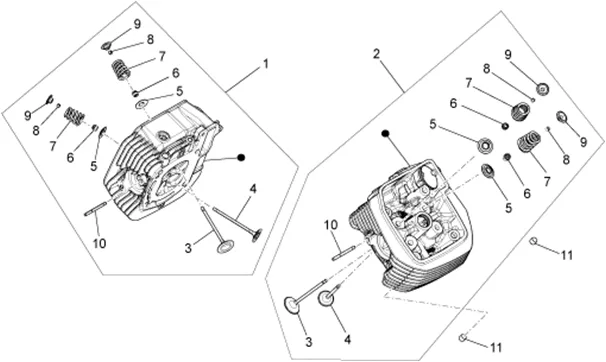

Moteur : 34.42 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_34.42.PNG)
1 |
B0138084 - TESTA DEL CILINDRO DX CPL (ERA B013808) More informationQuantity required : 1 |
||||||
|
2 |
B0138074-TESTA DEL CILINDRO SX CPL (ERA B013807) More informationQuantity required : 1 |
||||||
|
3 |
872695-VALVOLA ASPIRAZIONE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/1/9/img/98319.jpg)
4 |
VALVE EXHAUST OEM MOTO-GUZZI 1200-1400 (ENGINE HUIT SOUPAPES)-872696 More informationQuantity required : 4 |
||||||
|
5 |
874127-SCODELLINO INFERIORE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
6 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 8 |
||||||
|
7 |
B013517-MOLLA VALVOLA More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
8 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 8 |
||||||
|
9 |
874126-SCODELLINO SUPERIORE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
10 |
STUD (8X46) OEM PIAGGIO MULTI-USAGE COMMON LA RANGE-1A003632R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
11 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 8 |
