Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

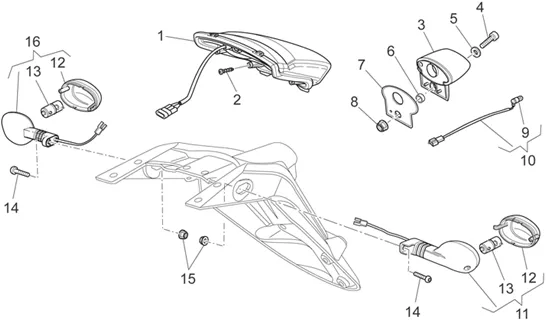

Chassis : 33.35 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.35.PNG)
1 |
GU06740900 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
2 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
3 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/1/img/133151.jpg)
4 |
SCREW BTR (5X22) OEM PIAGGIO COMMON A LA RANGE-GU98680222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
5 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/5/img/132275.jpg)
6 |
GU91120507-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/7/7/img/73477.jpg)
7 |
RUBBER LAMP DE PLATE OEM MOTO GUZZI COMMON A LA RANGE-GU32474710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
10 |
977795-CABLAGGIO LUCE TARGA More informationQuantity required : 1 |
||||||
|
11 |
FRONT RIGHT INDICATOR/REAR LEFT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 GRISO-GU06750600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/6/img/129066.jpg)
12 |
GU06753700-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
13 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
14 |
GU98370619-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/4/2/img/126142_20251023145522.jpg)
16 |
FRONT LEFT INDICATOR/REAR RIGHT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 GRISO-GU06751601 More informationQuantity required : 1 |
