Vehicle Exploded View - MOTO-GUZZI GRISO 1200 Griso SE 1200 8V 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

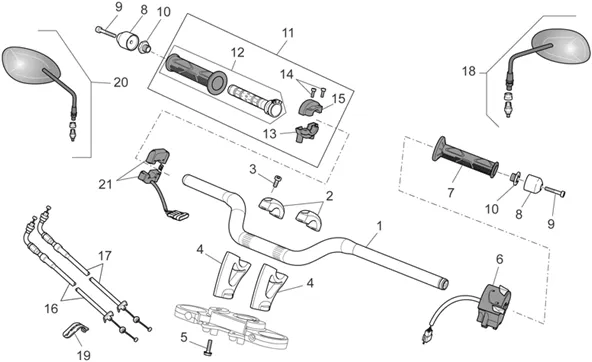

Chassis : 33.20 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/490/Griso_SE_1200_8V_2015_33.20.PNG)
1 |
886111-MANUBRIO * More informationQuantity required : 1 |
||||||
|
2 |
GU06500600-CAVALIER SUP. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
3 |
SCREW BTR (8X30) DOOR LUGGAGE OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO-GU98700430 More informationQuantity required : 4 |
||||||
|
4 |
GU06500200-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
5 |
AP8152325-SCREW FLANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/2/4/img/71624.jpg)
6 |
LEFT SWITCH "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO, 940 BELLAGIO/APRILIA 1000 TUONO -AP8127703 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
7 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/7/img/126067.jpg)
8 |
HANDLEBAR END OEM PIAGGIO FOR MOTORCYCLE-GUZZI 940 BELLAGIO 2007 > 2013, 1200 GRISO 2007 > 2013, 750 NEVADA 2009 >, 750 V-7 2008 >-GU32602860 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/5/img/133155.jpg)
9 |
SCREW BTR (6X40) OEM PIAGGIO COMMON A LA RANGE-GU98680340 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
10 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
|
11 |
GU05603331-CONTROL THROTTLE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/5/img/73415.jpg)
12 |
REVETEMENT DE GRIP RIGHT WITH SLEEVE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01603480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/2/img/71362.jpg)
13 |
CAVALIER FRONT CONTROL DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO-AP8118502 More informationQuantity required : 1 |
||||||
|
14 |
AP8118492-SCREW CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/3/img/71363.jpg)
15 |
HALF CLAMP (REAR) FOR THROTTLE HANDLE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4/MOTO-GUZZI GRISO, BREVA, BELLAGIO -AP8118503 More informationQuantity required : 1 |
||||||
|
16 |
978743-TRASM. COMANDO GAS More informationQuantity required : 1 |
||||||
|
17 |
978744-TRASM. RITORNO GAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/3/img/71243.jpg)
18 |
LEFT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104922 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
19 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 4 |
||||||
|
19 |
GU03609600-CLAMP L36 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
20 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/2/img/72852.jpg)
21 |
DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 1000 RSV, TUONO, 900 SHIVER, DORSODURO/MOTO-GUZZI GRISO, BELLAGIO, BREVA, SPORT-B045021 More informationQuantity required : 1 |
