Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

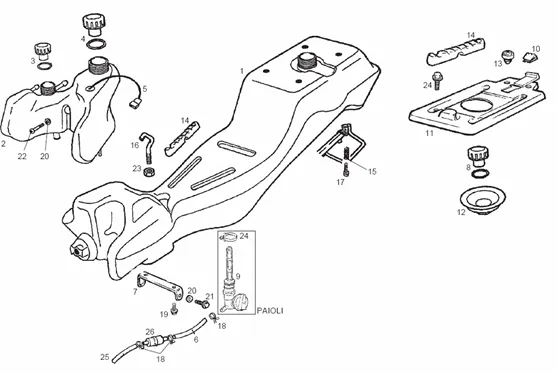

Tables : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1119/GPR_REPLICA_2001_EXPORT_MARKET_4.png)
1 |
00H00403541 - SERBATOIO BENZINA GPR More informationQuantity required : 1 |
||||||
|
2 |
00H03705081 - RESERVOIR D'HUILE More informationQuantity required : 1 |
||||||
|
3 |
00H03801471 - ENSEMBLE BOUCHON ROSERVOIR EAU More informationQuantity required : 1 |
||||||
|
4 |
00H03701061 - BOUCHON ROSERVOIR HUILE GPR-50 More informationQuantity required : 1 |
||||||
|
5 |
00G03702051 - ENSEMBLE JAUGE D'HUILE HUNTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/8/img/64808.jpg)
6 |
HOSE D'HUILE ENTRE ROBINET ET PUMP OEM PIAGGIO APRILIA 50 RS, RX, SX 2006 > 2010-00H03700111 More informationQuantity required : 1 |
||||||
|
7 |
00H00401051 - SUPPORT INFORIEUR ROSERVOIR ES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/4/img/63934.jpg)
8 |
CAP TANK D'ESSENCE OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00401131 More informationQuantity required : 1 |
||||||
|
9 |
00H00403181 - RUBINETTO GASOLINA GPR 50 More informationQuantity required : 1 |
||||||
|
10 |
00H01000351 - BUTFE ANTFRIEURE FIXATION PHAR More informationQuantity required : 1 |
||||||
|
11 |
00H00400461 - PLAQUE SUPORIEURE ROSERVOIR ES More informationQuantity required : 1 |
||||||
|
12 |
00H00401831 - RONDELLE ORIFICE RFSERVOIR ESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/2/5/img/65025.jpg)
13 |
BUFFER BODY PANEL FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 > 2017/DERBI 50 SENDA 2010 > 2017-00H06101101 More informationQuantity required : 1 |
||||||
|
14 |
00H06200151-BUTOE ROSERVOIR FUEL GPR-50 More informationQuantity required : 1 |
||||||
|
15 |
00H06200161 - RESSORT FIXATION RESERVOIR More informationQuantity required : 1 |
||||||
|
16 |
00H06300101 - CROCHET RESERVOIR ESSENCE GPR" More informationQuantity required : 1 |
||||||
|
17 |
00H06200141 - VIS FIXATION RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
18 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
19 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
20 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
21 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
22 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.jpg)
23 |
NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
24 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
||||||
|
25 |
00H00500581-HOSE D'HUILE More informationQuantity required : 1 |
||||||
|
26 |
00F00400611 - FILTRE A ESSENCE More informationQuantity required : 1 |
