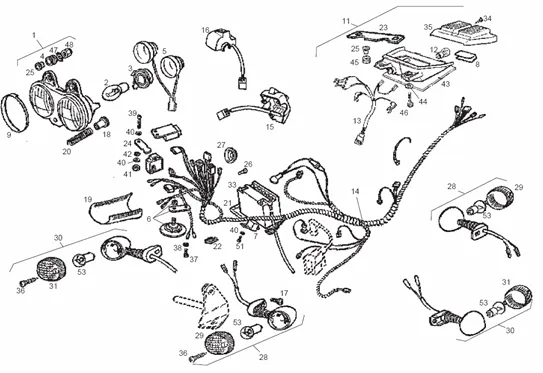

Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET

	P2R reference	63969
	Maker reference	00G01013011

00G01013011 - ENSEMBLE PHARE AV.

	P2R reference	193421
	Maker reference	00G01002111

00G01002111 - PORTE LAMPES

	P2R reference	193422
	Maker reference	00G02300091

00G02300091 - SILENTBLOC

	P2R reference	193423
	Maker reference	00G05700011

00G05700011 - ENS.INSTALLATION PHARE AVANT

	P2R reference	63903
	Maker reference	00F01001311

00F01001311 - ZLAXON COMPLET

	P2R reference	166209
	Maker reference	00G03900011

00G03900011 - ENS.RELAIS DEMARRAGE ELECT.

	P2R reference	64365
	Maker reference	00H01000351

00H01000351 - BUTFE ANTFRIEURE FIXATION PHAR

	P2R reference	64369
	Maker reference	00H01001051

00H01001051-GASKET PARABOLE HEADLAMP FRONT GPR

	P2R reference	188320
	Maker reference	00H01002841

00H01002841 - REGULATEUR

	P2R reference	70888
	Maker reference	898891

REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891

	P2R reference	193424
	Maker reference	00H02302601C

00H02302601C - R-CTO.FARO PILOTO S/INST.C/BOM

	P2R reference	193425
	Maker reference	00D01080371

00D01080371 - LAMPE 12V.10/5W.

	P2R reference	193426
	Maker reference	00H01002951

00H01002951 - ENSEMBLE INSTALLATION CLIGNOTA

	P2R reference	193427
	Maker reference	00H01018301

00H01018301 - FAISCEAU ELECTRIQUE

	P2R reference	193712
	Maker reference	00H01025301

00H01025301 - GR.CAVETTI ELETT.GPR (EMM)

	P2R reference	64590
	Maker reference	00H01700701

00H01700701 - ENSEMB.COMMUT.POUR CLIGNOTEUR

	P2R reference	193428
	Maker reference	00H02300171

00H02300171 - ENSEMBLE COMMUTATEUR PHARES

	P2R reference	63583
	Maker reference	000000126205

00000012620 - VIS

	P2R reference	193429
	Maker reference	00H02300521

00H02300521 - ECROU REGLAGE PHARE AVANT GPR-

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	64687
	Maker reference	00H02302501

SPRING REGLAGE DE HEADLAMP OEM PIAGGIO 50 GILERA SMT 2011 > 2017/DERBI SENDA 2010 > 2017-00H02302501

	P2R reference	64783
	Maker reference	00H03301551

00H03301551 - SUPPORT BATTERIE GPR-50"R"

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64602
	Maker reference	00H01800281

00H01800281 - SUPPORT PILOTE GPR-50"R"+

	P2R reference	63958
	Maker reference	00G01001821

BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821

	P2R reference	64610
	Maker reference	00H01801471

00H01801471 - BOUTON POSITIONNEUR BATTERIE GP

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63907
	Maker reference	00F01703301

00F01703301 - ENS.CLIGNOTANT ARR.DROITE

	P2R reference	188322
	Maker reference	00G01702892

00G01702892-GLACE REAR RIGHT INDICATOR

	P2R reference	63908
	Maker reference	00F01703391

00F01703391 - ENS.CLIGNOTANT ARR. GAUCHE

	P2R reference	188327
	Maker reference	00G01702902

00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH

	P2R reference	64011
	Maker reference	00G01700401

00G01700401-CENTRAL CLIGNOTANTE

	P2R reference	65970
	Maker reference	234390

BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	193431
	Maker reference	00H01001341

00H01001341 - CABOCHON DU FEU ARRIERE

	P2R reference	64012
	Maker reference	00G01701091

00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN

	P2R reference	66338
	Maker reference	319446

SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	65460
	Maker reference	0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

	P2R reference	71851
	Maker reference	AP8150284

WASHER EVENTAIL (D5) OEM PIAGGIO COMMON A LA RANGE-AP8150284

	P2R reference	193432
	Maker reference	00H02200971

00H02200971 - PROTECTION PHARE PILOTE GPR50

	P2R reference	64257
	Maker reference	00H00500211

00H00500211 - RONDELLE

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	64117
	Maker reference	00G04400601

00G04400601 - TUYAU DEVAPORISATION BATTERIE

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332
