Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

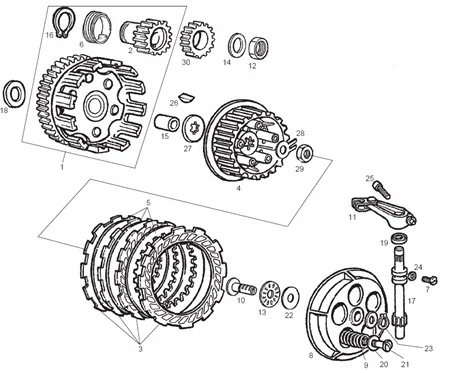

Tables : 16 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1119/GPR_REPLICA_2001_EXPORT_MARKET_16.png)
1 |
00H03605521 - CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
2 |
00H02610381-SPROCKET ENGINE Z-22. 74/80CC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
3 |
DISC CLUTCH MENANT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
4 |
NOIX D'CLUTCH OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50-125 RS4 2011 >, 50 SX, RX 2006 >, 125 RX, SX 2018 >-847045 More informationQuantity required : 1 |
||||||
|
5 |
00H02600151 - DISQUE EMBRAYAGE LISSE More informationQuantity required : 1 |
||||||
|
6 |
00H01600111 - VIS COMMANDE COMPTE-TOURS 50/7 More informationQuantity required : 1 |
||||||
|
7 |
00H02600341 - VIS More informationQuantity required : 1 |
||||||
|
8 |
00H02600181 - PLATEAU EXTERIEUR D,EMBRAYA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
9 |
SPRING DE PLATEAU CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 > APRILIA SX, RX, RS 2006 >-847047 More informationQuantity required : 1 |
||||||
|
10 |
00H02600271 - CREMAILLETE D,EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
00H02600321 - VIS HELICOIDALE AVEC LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/7/img/64717.jpg)
12 |
NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
13 |
BEARING DE ROD OF CONTROL CLUTCH OEM 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >, RS4 2011 >-8472226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/5/img/69515.jpg)
14 |
WASHER D'ENGRENAGE SHAFT D'EQUILIBRAGE OEM PIAGGIO APRILIA 50 RS 2006 >-847276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
15 |
TAMBOUR CLUTCH (D23) 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/APRILIA 50 SX, RX 2006 > 2013, RS 2006 > 2010, RS4 2011 >/DERBI 50 SENDA 2006 > (PREVOIR SPROCKET FOR MODEL EURO 2)-497643 More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
00H02610311 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
18 |
WASHER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA 50-125 SX, RX, RS-847218 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
19 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
20 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
21 |
00012053500 - VIS 5M80X35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
22 |
WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
23 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
24 |
WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-00H03800441 More informationQuantity required : 1 |
||||||
|
25 |
|
||||||
|
26 |
00H02600491 - CLAVETTE PIGNON MOT. D-6888. 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/5/6/9/img/187569.jpg)
27 |
WASHER ETOILEE CLUTCH OEM DERBI 50 SENDA 2006 <-00D02600552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
28 |
WASHER BRAKE D'EMBRAYAGE 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA 50 RS4 2011 >, 50 RX, SX 2006 >-876418 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
29 |
NUT NOIX CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 >-847221 More informationQuantity required : 1 |
||||||
|
30 |
00H03800181 - PIGNON More informationQuantity required : 1 |
