Vehicle Exploded View - DERBI GPR 50 GPR R 50cc REPLICA MALOSSI 2007 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

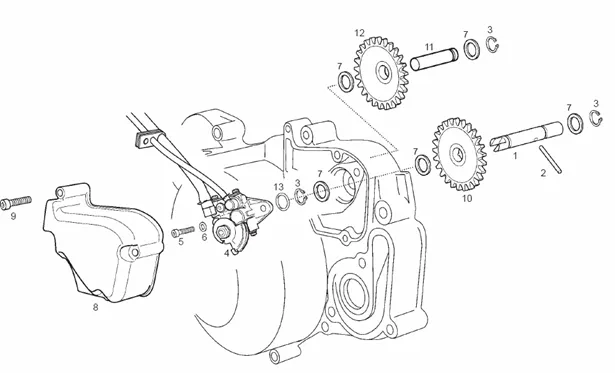

Tables : 25 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1121/GPR_R_50cc_REPLICA_MALOSSI_2007_E2_2ver_25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/5/img/69435.jpg)
1 |
SHAFT OF PUMP A OIL OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS-847052 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/2/img/69482.jpg)
2 |
GOUPILLE SHAFT OF WATER PUMP OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847184 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/8/img/63808.jpg)
3 |
CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/7/img/69437.jpg)
4 |
OIL PUMP 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-847055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/7/img/69497.jpg)
5 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
6 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/1/img/69481.jpg)
7 |
WASHER PLATE (14. 1X18. 2X1) OEM PIAGGIO COMMON A LA RANGE-847183 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/8/img/64828.jpg)
8 |
COVER OIL PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2006 > 2017/APRILIA SX, RX, RS 2006 > 2017-00H03706011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/9/img/63649.jpg)
9 |
SCREW BTR (5X80) CASING OIL PUMP OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00004154000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/4/img/69434.jpg)
10 |
GEAR OIL PUMP 25DTS OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR 2006 >/APPRILIA 50 SX, RX 2006 >-847051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/0/img/69450.jpg)
11 |
SHAFT OF OIL PUMP OEM DERBI 50 SENDA 2006 >/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, TUONO, RS-847076 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/6/img/69436.jpg)
12 |
GEAR OIL PUMP 24 TEETH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-847053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/0/img/66330.jpg)
13 |
GASKET OF OIL PUMP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >-311163 More informationQuantity required : 1 |
