Vehicle Exploded View - DERBI GPR 50 GPR R 50cc REPLICA MALOSSI 2007 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

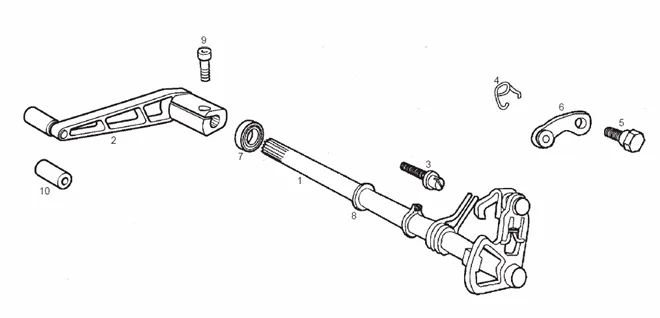

Tables : 19 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1121/GPR_R_50cc_REPLICA_MALOSSI_2007_E2_2ver_19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.jpg)
1 |
SPINDLE GEAR LEVER (LLIVRE NU) OEM DERBI 50 SENDA 2010 >/APRILIA 50 RS 2006 > 2010, RS4 2011 >, SX-RX 2006 >/GILERA 50 SMT, RCR 2006 >-1A004355 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/2/9/img/64729.jpg)
2 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" 50 APRILIA RS 2006>2010 -00H02706421- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/6/8/img/142268.jpg)
3 |
SCREW RAPPEL SPRING SHAFT OF SELECTEUR OEM DERBI 50 SENDA 2000 > 2012/GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006 > 2010-B017981 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
4 |
SPRING GEAR LEVER 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA RS4 2011 >, 50 SX, RX 2006 >-1A010665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/2/img/151722.jpg)
5 |
SCREW PLATE SPRING SPINDLE SELECTEUR DE VITESSES OEM DERBI SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-1A010690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
6 |
LEVER INTERNE SELECTION VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 >, SX, RX-1A010685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
7 |
OIL SEAL (12X20X5) SPINDLE CONTROL CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-847075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
8 |
WASHER DE CALAGE SPINDLE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8472286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
10 |
00H02701271 - CAOUTCHOUC DE SELECTEUR More informationQuantity required : 1 |
