Vehicle Exploded View - DERBI GPR 50 GPR R 50cc REPLICA MALOSSI 2007 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

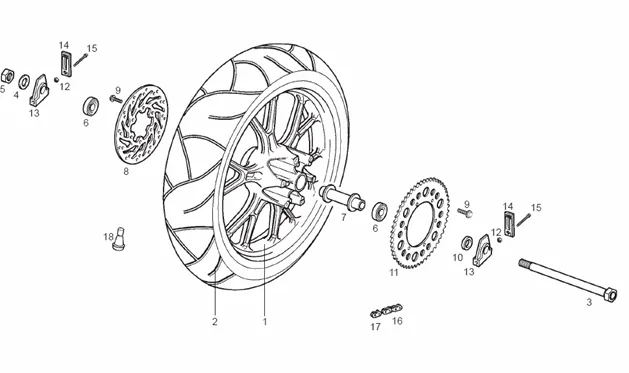

Tables : 11 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1121/GPR_R_50cc_REPLICA_MALOSSI_2007_E2_2ver_11.png)
1 |
RIM/REAR WHEEL OEM APRILIA 50 RS 2006 >-00H01310381 More informationQuantity required : 1 |
||||||
|
2 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 1 |
||||||
|
3 |
00H01306201 - S/ENSEMBLE AXE ROUE ARRIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
4 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
6 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/0/img/64500.jpg)
7 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 50-125 RS 2011 >, 125 TUONO 2017 >-00H01308091 More informationQuantity required : 1 |
||||||
|
8 |
866493 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
9 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 1 |
||||||
|
10 |
00H01308181 - ENTRETOISE ROUE ARRIERE COTE D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
11 |
COURONNE 53 TEETH OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2006 > 2015/APRILIA RS4 2011 >, RX 2011 >, SX 2011 >-86182R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/9/3/img/64493.jpg)
13 |
COULISSE DE TENDEUR DE REAR WHEEL OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01306811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/8/img/64488.jpg)
14 |
COVER DE TENDEUR DE REAR WHEEL OEM DERBI 50 SENDA DRD 2005 > 2011/APRILIA 50 RS 2006 > 2010-00H01306171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/2/img/64472.jpg)
15 |
SCREW BTR (6X60) OEM PIAGGIO COMMON A LA RANGE-00H01302491 More informationQuantity required : 1 |
||||||
|
16 |
00H01515201 - CHAINE TRANSMISSION 132P More informationQuantity required : 1 |
||||||
|
17 |
00H01501211-CLIP QUICK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
18 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
