Vehicle Exploded View - DERBI GPR 50 cc RACING 2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

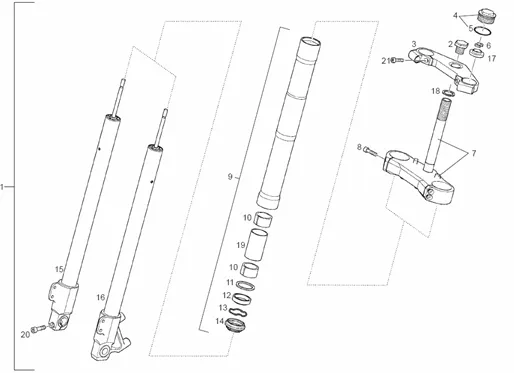

Suspensions - roues : 02B FOURCHE MARZOCCHI
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1117/GPR_50cc_RACING_2006_E2_2ed_02B.png)
1 |
00H00235001 - ENSEMBLE FOURCHE AVANT More informationQuantity required : 1 |
||||||
|
2 |
861627-CAP More informationQuantity required : 1 |
||||||
|
3 |
861628 - PLAQUE FOURCHE More informationQuantity required : 1 |
||||||
|
4 |
AP8123348-OEM MOPED CAP OF FORK APRILIA 50-125 RS, 650 PEGASO, 125 SC More informationQuantity required : 1 |
||||||
|
5 |
00H00206501-ANNEAU More informationQuantity required : 1 |
||||||
|
6 |
CIRCLIPS UPPER FORK MARZOCCHI OEM PIAGGIO 50 RS APRILIA 2006 > 2010-00H00200721 More informationQuantity required : 1 |
||||||
|
7 |
861629 - PLAQUE FOURCHE More informationQuantity required : 1 |
||||||
|
8 |
861630 - VIS More informationQuantity required : 1 |
||||||
|
9 |
861631 - FODERO FORCELLA More informationQuantity required : 1 |
||||||
|
10 |
00H00210151 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/6/7/img/64167.jpg)
11 |
BUSH OF FORK MARZOCCHI (D40) OEM PIAGGIO APRILIA 50 RS, RX, SX 2006 > 2010-00H00201441 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/5/img/67385.jpg)
12 |
OIL SEAL (40X52. 2X10/10. 5) DE FORK MARZOCCHI OEM PIAGGIO 500 X9/APRILIA 50-125-250 RS, 500 ATLANTIC, 650 PEGASO/GILERA 500 NEXUS/MOTO-GUZZI 750 BREVA, NEVADA, V7-599501 More informationQuantity required : 1 |
||||||
|
13 |
00H00200701 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/8/6/img/67386.jpg)
14 |
PROTECTOR POUSSIERE FORK OEM PIAGGIO APRILIA 50-125-250 RS/DERBI SENDA (MARZOCCHI) 2003 > 2011/MOTO-GUZZI V7, BREVA NEVADA-599502 More informationQuantity required : 1 |
||||||
|
15 |
861632 - TIGE FOURCHE More informationQuantity required : 1 |
||||||
|
16 |
861633-ROD FORK More informationQuantity required : 1 |
||||||
|
17 |
AP8123357-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/0/7/img/69907.jpg)
18 |
WASHER DE TUBE STEERING OEM DERBI 50 GPR 2006 > 2008-861634 More informationQuantity required : 1 |
||||||
|
19 |
861635 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
20 |
00H00200831-SCREW More informationQuantity required : 1 |
||||||
|
21 |
861636 - VIS More informationQuantity required : 1 |
