Vehicle Exploded View - DERBI GPR 50 cc RACING 2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

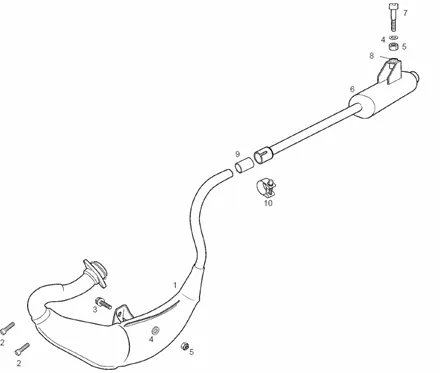

Moteur : 14 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1117/GPR_50cc_RACING_2006_E2_2ed_14.png)
1 |
00H03448601 - SCTO.TUBO-ESCAPE GRP 50CC ¦06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
2 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
|
3 |
00006082000 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
4 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022 More informationQuantity required : 1 |
||||||
|
6 |
00H03430411 - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
7 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500 More informationQuantity required : 1 |
||||||
|
8 |
00H02201731-RUBBER MOUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/4/img/64794.jpg)
9 |
EXHAUST GASKET- FROM PIPE TO SILENCER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010, 125 SC -00H03405321- More informationQuantity required : 1 |
||||||
|
10 |
851470-CLAMP More informationQuantity required : 1 |
