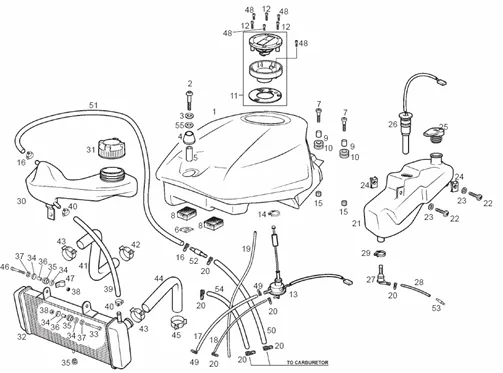

Châssis - parties plastiques - carrosseries : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1117/GPR_50cc_RACING_2006_E2_2ed_4.png)
1 |
86238201WN05 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
86238201WR05 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/8/img/63668.jpg)
2 |
SCREW BTR HEAD BOMBEE (6X45) OEM PIAGGIO COMMON A LA RANGE-00008064500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/5/img/63595.jpg)
3 |
WASHER PLATE (7, 3X13, 8) OEM PIAGGIO COMMON A LA RANGE-MM00000031070 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/5/img/64245.jpg)
4 |
00H00402581 - PUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/6/img/64546.jpg)
5 |
SPACER MOUNTING TANK OEM APRILIA 50 RS 2006 > 2010-00H01504051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
7 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
8 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/8/img/63958.jpg)
9 |
BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/8/img/64248.jpg)
10 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-00H00403581 More informationQuantity required : 1 |
||||||
|
11 |
00H00402131-ENS. CAP RESERV. FUEL V. B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/5/img/63615.jpg)
12 |
SCREW FLANGE BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-00002053051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/9/img/65059.jpg)
13 |
ROBINET FUEL OEM PIAGGIO APRILIA 50 RS 2006 > 2011-00H10408181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
14 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
||||||
|
15 |
00H04400711 - ECROU More informationQuantity required : 1 |
||||||
|
16 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
|
17 |
00H00406321 - TUYAU More informationQuantity required : 1 |
||||||
|
18 |
00G06201061 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
00H06202061-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
20 |
HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/9/img/64829.jpg)
21 |
TANK OIL OEM DERBI 50 GPR 2006 > 2008-00H03706081 More informationQuantity required : 1 |
||||||
|
22 |
00092063514-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
23 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
24 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/1/img/64821.jpg)
25 |
CAP DE TANK OIL OEM PIAGGIO GILERA 125 SC/APRILIA 50 RS 2006 > 2010-00H03702061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/2/5/img/64825.jpg)
26 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 125 SC -00H03704051 More informationQuantity required : 1 |
||||||
|
27 |
00H03701411 - FILTRE A HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/8/img/64808.jpg)
28 |
HOSE D'HUILE ENTRE ROBINET ET PUMP OEM PIAGGIO APRILIA 50 RS, RX, SX 2006 > 2010-00H03700111 More informationQuantity required : 1 |
||||||
|
29 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
||||||
|
30 |
VASE EXPANSION OEM PIAGGIO APRILIA 50 RS 2006 > 2010/GILERA 125 SC-00H03803501 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/8/img/64858.jpg)
31 |
CAP DE TANK LIQUIDE COOLING OEM DERBI 50 SENDA 2004 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-00H03802472 More informationQuantity required : 1 |
||||||
|
32 |
86201R - RADIATEUR More informationQuantity required : 1 |
||||||
|
33 |
00002064011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/3/img/63883.jpg)
34 |
WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/3/img/63673.jpg)
35 |
RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/2/img/63882.jpg)
36 |
SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471 More informationQuantity required : 1 |
||||||
|
37 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
38 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
39 |
00H03803491-HOSE More informationQuantity required : 1 |
||||||
|
40 |
00H03801701-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/6/9/img/64869.jpg)
41 |
DURIT DU RADIATOR AU TANK OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H03807041 More informationQuantity required : 1 |
||||||
|
42 |
CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751 More informationQuantity required : 1 |
||||||
|
43 |
00H03802091 - COLLIER More informationQuantity required : 1 |
||||||
|
44 |
00H03813021 - TUYAU More informationQuantity required : 1 |
||||||
|
45 |
00H03802751-CLAMP More informationQuantity required : 1 |
||||||
|
46 |
00000004645-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
47 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454 More informationQuantity required : 1 |
||||||
|
48 |
00002051251-SCREW A HEAD CREUSE 5M80X12 N More informationQuantity required : 1 |
||||||
|
49 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/3/img/64853.jpg)
50 |
HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961 More informationQuantity required : 1 |
||||||
|
51 |
00H03807491 - TUYAU More informationQuantity required : 1 |
||||||
|
52 |
00H03800861-FITTING HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/9/8/img/64098.jpg)
53 |
00G03701031 - RACCORD ENTREE DIHUILE More informationQuantity required : 1 |
||||||
|
54 |
HOSE COOLING DU CYLINDER AU CARBU OEM PIAGGIO GILERA 50 SMT, RCR/DERBI SENDA 2006 >/APRILIA 50 SX, RX, RS-00H03801961 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/0/img/63640.jpg)
55 |
WASHER RUBBER (7. 5X14X3) OEM PIAGGIO COMMON A LA RANGE-00003515370 More informationQuantity required : 1 |
