Vehicle Exploded View - DERBI GP1 125 3ver E2 2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

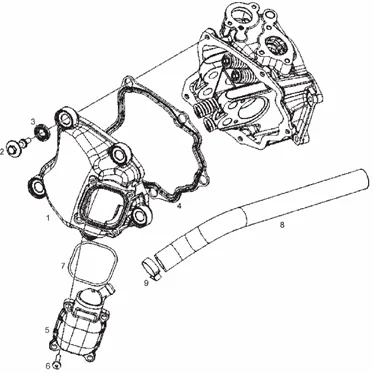

Vues éclatées : 22 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1148/GP1_125_3ver_E2_2006_(EMEA)_22.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/4/img/68854.jpg)
1 |
COVER CYLINDER HEAD OEM PIAGGIO 125-250-300 COMMON A LA RANGE-829534 More informationQuantity required : 1 |
||||||
2 |
830248 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/2/img/68902.jpg)
3 |
GASKET OF SCREW COVER DE CYLINDER HEAD OEM PIAGGIO 125-400-500 MP3, BEVERLY, 125-350 X10/APRILIA 750 DORSODURO, SHIVER, 850 SRV/GILERA 250-300-500 ATLANTIC, NEXUS/MOTO-GUZZI 1200 SPORT, GRISO-830249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/5/img/68855.jpg)
4 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125 X-EVO, 125 X10/APRILIA 125-250-300 ATLANTIC, SR MAX/GILERA 125 NEXUS, RUNNER-829536 More informationQuantity required : 1 |
||||||
|
5 |
OIL DRAINING BODY "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO MAXISCOOTERS -1A010691R More informationQuantity required : 1 |
||||||
|
6 |
828653 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
7 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-1A003985 More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
9 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
