Vehicle Exploded View - DERBI GP1 125 3ver E2 2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

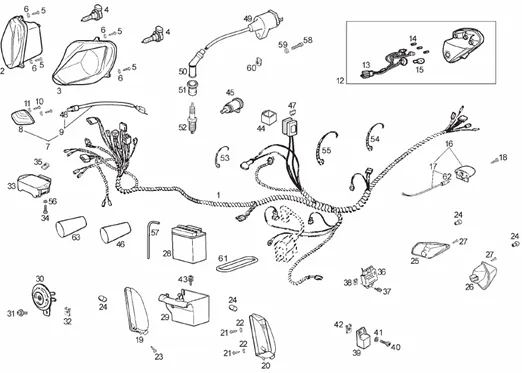

Vues éclatées : 10 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1148/GP1_125_3ver_E2_2006_(EMEA)_10.png)
1 |
00G01045301 - CTO.INSTAL.ELECTRC.GP1 250CC More informationQuantity required : 1 |
|||||||||
|
2 |
00G01026011-LAMP UNIT DR. More informationQuantity required : 1 |
|||||||||
|
2 |
00H01023011-LAMP UNIT RIGHT More informationQuantity required : 1 |
|||||||||
|
3 |
00H01024011-LAMP UNIT LEFT More informationQuantity required : 1 |
|||||||||
|
3 |
00G01027011 - OPTIQUE GA. More informationQuantity required : 1 |
|||||||||
|
4 |
00H01002131 - AMPOULE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/1/img/64381.jpg)
4 |
AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-00H01004131 More informationQuantity required : 1 |
|||||||||
|
5 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
6 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
|||||||||
|
7 |
00H05704471-LUMIERE DE POSITION OEM GILERA SC 125 2006 More informationQuantity required : 1 |
|||||||||
|
8 |
00H05701471 - FEU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/4/img/65004.jpg)
9 |
00H05703471-TUBE PHARES More informationQuantity required : 1 |
|||||||||
|
10 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
11 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/7/img/64387.jpg)
12 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321 More informationQuantity required : 1 |
|||||||||
|
13 |
00H01003951-HARNESS LAMP REAR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/1/img/64371.jpg)
14 |
00H01001371 - AMPOULE 12V.2,31W More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/1/7/0/img/48170.jpg)
15 |
BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490 More informationQuantity required : 1 |
|||||||||
|
16 |
00G05701471-TUBE PHARES More informationQuantity required : 1 |
|||||||||
|
17 |
00G02300581-LAMP REGISTRE More informationQuantity required : 1 |
|||||||||
|
18 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
|||||||||
|
19 |
00G01706021 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
20 |
00G01706311 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
21 |
|
|||||||||
|
22 |
|
|||||||||
|
23 |
|
|||||||||
|
24 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 1 |
|||||||||
|
25 |
00G01700531 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
26 |
00G01700541 - CLIGNOTANT More informationQuantity required : 1 |
|||||||||
|
27 |
|
|||||||||
|
28 |
00G03304401 - BATERIA 12V.12A GP1 250CC More informationQuantity required : 1 |
|||||||||
|
29 |
00G03301551 - CAJA BATERIA GP1 250CC 05 E2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/8/4/img/72984.jpg)
30 |
AVERTISSEUR/HORN OEM PIAGGIO COMMON A LA RANGE-CM071803 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
31 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
32 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
33 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
|
34 |
00012062500-SCREW CRUXIFORME 6M100X25 More informationQuantity required : 1 |
|||||||||
|
35 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/5/img/67195.jpg)
36 |
CDI UNIT "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC, SCARABEO, SPORT-CITY -58101R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/5/1/img/64151.jpg)
37 |
SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021 More informationQuantity required : 1 |
|||||||||
|
38 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
39 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
|||||||||
|
40 |
VIS T.CREUSE 5M80X15 D912/8.8 |
|||||||||
|
41 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
42 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
|
43 |
00D05900031 - VIS More informationQuantity required : 1 |
|||||||||
|
44 |
942577-BRACKET RELAIS More informationQuantity required : 1 |
|||||||||
|
45 |
00G05700641 - CONNECTEUR ALIMENTATION TELEPH More informationQuantity required : 1 |
|||||||||
|
46 |
582107 - CAPUCHON ISOLANT More informationQuantity required : 1 |
|||||||||
|
47 |
00H01002911 - FUSIBLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
48 |
00H01003131-AMPOULE 12V-5W More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/6/img/67186.jpg)
49 |
BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4T/APRILIA 125 SPORT-CITY-ONE-58083R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
50 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-293845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
51 |
CAPUCHON ISOLANT ANTI PARASITE OEM PIAGGIO COMMON A LA RANGE-436919 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
52 |
SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
52 |
SPARK PLUG CR8EB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-638853 More informationQuantity required : 1 |
|||||||||
|
53 |
00A00900531 - COLLIER More informationQuantity required : 1 |
|||||||||
|
54 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
55 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
56 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
|||||||||
|
57 |
00H04402601 - TUBO DESVAP.BATERIA GPR 04 More informationQuantity required : 1 |
|||||||||
|
58 |
|
|||||||||
|
59 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
|||||||||
|
60 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
|
61 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
|||||||||
|
62 |
00H01003131-AMPOULE 12V-5W More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
63 |
PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961 More informationQuantity required : 1 |
|||||||||
