Vehicle Exploded View - DERBI GP1 125 3ver E2 2006 (EMEA) DERBI

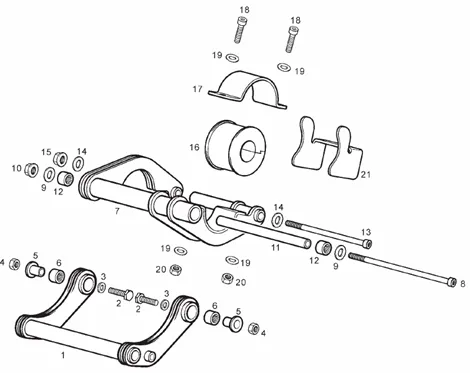

Vues éclatées : 14 SUPPORT MOTEUR
Support moteur
Search
863379 - CTO.SOPTE.ANT.MOTOR GP1 125 LS

1
P2R reference P2R reference 194979
Maker reference Maker reference 863379

863379 - CTO.SOPTE.ANT.MOTOR GP1 125 LS

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 000221470715

WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000

3
P2R reference P2R reference 63730
Maker reference Maker reference 000320150005

WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000

More information

Quantity required : 1

4
P2R reference P2R reference
Maker reference Maker reference 002811415035

00G00102381 - CASQU.SEP.CTO.SOP.MOT CHASIS

5
P2R reference P2R reference 194980
Maker reference Maker reference 00G00102381

00G00102381 - CASQU.SEP.CTO.SOP.MOT CHASIS

More information

Quantity required : 1

00G00300701 - CASQ.AGUJAS HK 2020 2RS

6
P2R reference P2R reference 194981
Maker reference Maker reference 00G00300701

00G00300701-CASQ. AGUJAS HK 2020 2RS

More information

Quantity required : 1

861134 - CTO.SOPTE.POST.MOTOR GP1 250CC

7
P2R reference P2R reference 194982
Maker reference Maker reference 861134

861134 - CTO.SOPTE.POST.MOTOR GP1 250CC

More information

Quantity required : 1

00G03001271 - BOULON DE SERRAGE MOTEUR

8
P2R reference P2R reference 64066
Maker reference Maker reference 00G03001271

00G03001271-BOLT DE SERRAGE ENGINE

More information

Quantity required : 1

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

9
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

More information

Quantity required : 1

10
P2R reference P2R reference
Maker reference Maker reference 000000231005

00G00104831 - TUBO.SEPAR.SOP.MOTOR.GP1 250CC

11
P2R reference P2R reference 194983
Maker reference Maker reference 00G00104831

00G00104831-TUBO. SEPAR. SOP. MOTOR. GP1 250CC

More information

Quantity required : 1

00G00300811 - CASQ.AGUJAS HK 1514 RS

12
P2R reference P2R reference 194984
Maker reference Maker reference 00G00300811

00G00300811 - CASQ.AGUJAS HK 1514 RS

More information

Quantity required : 1

00G03002271 - TORN.FIJ.SOPTE.MOTOR A MOTOR

13
P2R reference P2R reference 194985
Maker reference Maker reference 00G03002271

00G03002271 - TORN.FIJ.SOPTE.MOTOR A MOTOR

More information

Quantity required : 1

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

14
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

More information

Quantity required : 1

15
P2R reference P2R reference
Maker reference Maker reference 000000231005

00G00308401 - SILENTBL.SOPT.MOTOR GP1 250CC

16
P2R reference P2R reference 194986
Maker reference Maker reference 00G00308401

00G00308401 - SILENTBL.SOPT.MOTOR GP1 250CC

More information

Quantity required : 1

00G01501431 - BRIDA FIJ.SILENTBL.MOT.GP1 250

17
P2R reference P2R reference 194987
Maker reference Maker reference 00G01501431

00G01501431 - BRIDA FIJ.SILENTBL.MOT.GP1 250

More information

Quantity required : 1

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

18
P2R reference P2R reference 71829
Maker reference Maker reference AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 1

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

19
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022

20
P2R reference P2R reference 63767
Maker reference Maker reference 002620800225

NUT AUTOBLOQUANT/NYLSTOP (M8X125) OEM PIAGGIO COMMON A LA RANGE-00262080022

More information

Quantity required : 1

861043 - BRIDA RETENCION SILENTB. GP1 250CC

21
P2R reference P2R reference 194988
Maker reference Maker reference 861043

861043 - BRIDA RETENCION SILENTB. GP1 250CC

More information

Quantity required : 1
