Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

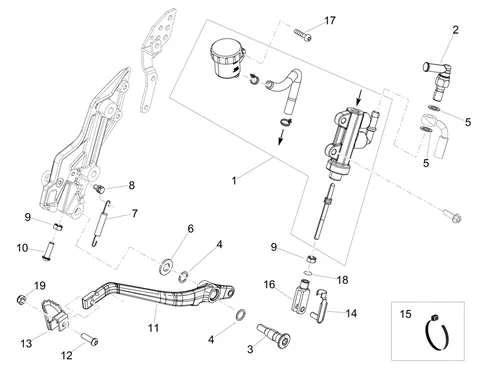

Système frein abs : 06.030 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/828/Dorsoduro_900_E4_ABS_2018_(EMEA)_06.030.png)
1 |
860426-MA? T. CYL. BRAKE REAR More informationQuantity required : 1 |
|||||||||
|
2 |
854973-INTERRUPTEUR STOP More informationQuantity required : 1 |
|||||||||
|
3 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
4 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
6 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/6/img/71436.jpg)
7 |
SPRING PEDAL OF BRAKE REAR OEM APRILIA CAPONORD, DORSODURO, SHIVER-AP8121126 More informationQuantity required : 1 |
|||||||||
|
8 |
2B004785-PIVOT FIX. SPRING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
9 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/7/4/img/139074.jpg)
11 |
PEDALE BRAKE REAR OEM PIAGGIO APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD-2B002641 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/1/1/img/39111.jpg)
13 |
FOOTREST PEDAL OF BRAKE OEM PIAGGIO CAPONORD, DORSODURO-851049 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
14 |
AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301 More informationQuantity required : 1 |
|||||||||
|
15 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
16 |
FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/2/0/img/50920.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
18 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 1 |
|||||||||
