Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

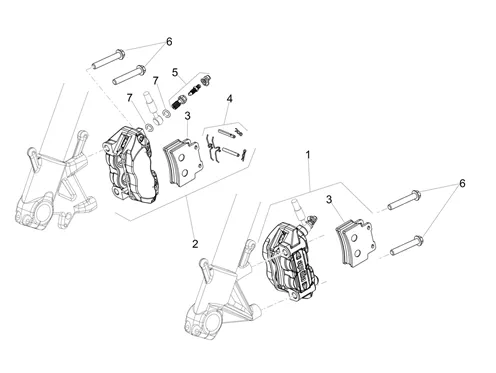

Système frein abs : 06.020 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/828/Dorsoduro_900_E4_ABS_2018_(EMEA)_06.020.png)
1 |
851724-PINCE BRAKE FRONT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/1/1/img/149511.jpg)
2 |
ETIRIER BRAKE FRONT OEM PIAGGIO 125 RS 2006 > 2010, DORSODURO-SHIVER FRONT RIGHT-AP8133841 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/1/img/71691.jpg)
3 |
BRAKE PAD OEM PIAGGIO APRILIA 750-900 DORSODURO 2008 > AV, 1200 CAPONORD 2014 > AV, 750-900 SHIVER 2007 > AV, 850 MANA 2007 > AV, 125 RS 2006 > 2010 AV (ORGANIQUE)-AP8133943 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/8/6/6/img/48866.jpg)
4 |
KIT DE REPARATION STUD + SPRING PLATE FRONT OEM APRILIA 750-900 DORSODURO, SHIVER-AP8133944 More informationQuantity required : 4 |
||||||
|
5 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
6 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
