Vehicle Exploded View - APRILIA DORSODURO 900 E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

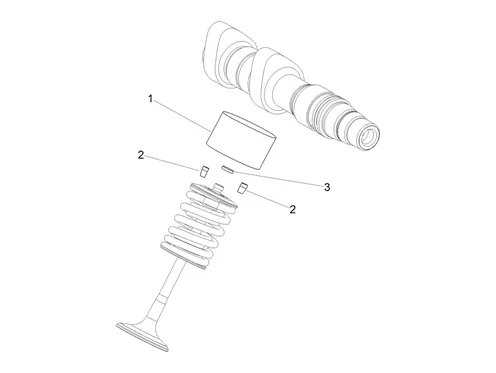

Moteur : 03.110 PLAQUETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/828/Dorsoduro_900_E4_ABS_2018_(EMEA)_03.110.png)
1 |
873082-RENIFLARD More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
2 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 8 |
||||||
|
3 |
CM163217-PLAQUETTES CALIBRAGE (SP. 3, 20) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/0/img/96180.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (2, 50) OEM APRILA 900 DORSODURO, PIAGGIO 400/350 MP3, BEVERLY-CM163203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/8/img/96188.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (2, 90) OEM APRILA 900 DORSODURO, PIAGGIO 400/350 MP3, BEVERLY-CM163211 More informationQuantity required : 1 |
||||||
|
3 |
CM163218-PLAQUETTES CALIBRAGE (SP. 3, 25) More informationQuantity required : 1 |
||||||
|
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X3. 30) OEM PIAGGIO COMMON A LA RANGE-CM163219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/9/3/img/96193.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (3, 15) OEM PIAGGIO 400/350 MP3/BEVERLY 350 X10/APRILIA 900 DORSODURO/SHIVER-CM163216 More informationQuantity required : 1 |
||||||
|
3 |
CM163201-PLAQUETTES CALIBRAGE (SP. 2, 40) More informationQuantity required : 1 |
||||||
|
3 |
CM163208-PLAQUETTES CALIBRAGE (SP. 2, 75) More informationQuantity required : 1 |
||||||
|
3 |
CM163202-PLAQUETTES CALIBRAGE (SP. 2, 45) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/7/img/96187.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X2. 85) OEM PIAGGIO COMMON A LA RANGE-CM163210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/3/img/96183.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (2. 65) OEM PIAGGIO 400/350 MP3/BEVERLY 350 X10/APRILIA 900 DORSODURO/SHIVER-CM163206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/6/img/96186.jpg)
3 |
CM163209-PLAQUETTES CALIBRAGE (SP. 2, 80) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/1/img/96181.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (2, 55) OEM APRILA 900 DORSODURO, PIAGGIO 400/350 MP3, BEVERLY-CM163204 More informationQuantity required : 1 |
||||||
|
3 |
CM163207-PLAQUETTES CALIBRAGE (SP. 2, 70) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/9/0/img/96190.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X3. 00) OEM PIAGGIO COMMON A LA RANGE-CM163213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/9/1/img/96191.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X3. 05) OEM PIAGGIO COMMON A LA RANGE-CM163214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/9/img/96189.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X2. 95) OEM PIAGGIO COMMON A LA RANGE-CM163212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/8/2/img/96182.JPG)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (2. 60) OEM PIAGGIO 400/350 MP3/BEVERLY 350 X10/APRILIA 900 DORSODURO/SHIVER-CM163205 More informationQuantity required : 1 |
||||||
|
3 |
CM163220-PLAQUETTES CALIBRAGE (SP. 3, 35) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/9/8/img/96198.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X3. 40) OEM PIAGGIO COMMON A LA RANGE-CM163221 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/1/9/2/img/96192.jpg)
3 |
PASTILLE OF ADJUSTMENT OF VALVE (9. 49X3. 10) OEM PIAGGIO COMMON A LA RANGE-CM163215 More informationQuantity required : 1 |
