Vehicle Exploded View - GILERA DNA 180 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

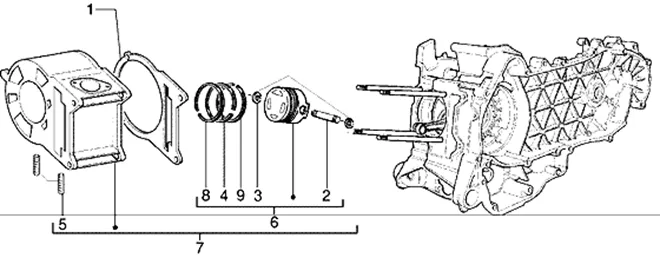

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE D
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T4.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114 More informationQuantity required : 1 |
||||||
2 |
825172 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
3 |
CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486 More informationQuantity required : 2 |
||||||
|
4 |
487884 - SEGMENT RACLEUR D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
5 |
STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397 More informationQuantity required : 2 |
||||||
|
6 |
8286975001 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
6 |
GROUPE PISTON |
||||||
|
6 |
8286975003 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
6 |
GROUPE PISTON |
||||||
|
7 |
CYLINDRE |
||||||
|
8 |
825489-PISTON RING More informationQuantity required : 1 |
||||||
|
9 |
487883 - SEGMENT More informationQuantity required : 1 |
