Vehicle Exploded View - GILERA DNA 180 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

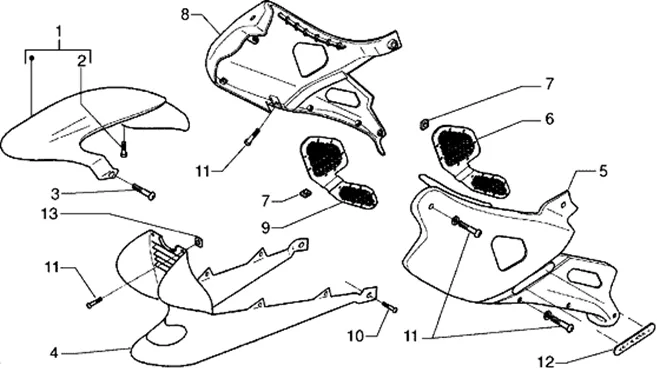

Châssis : T25 COUVERTURES LATERALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T25.PNG)
0 |
577222 - GARDE-BOUE INFERIEUR ARR. M26-C27 More informationQuantity required : 1 |
||||||
|
1 |
9701215090 - GARDE BOUE AV NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 DNA BLUE 280 -97012150A3- More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50-125 DNA YELLOW 384 -97012150G9- More informationQuantity required : 1 |
||||||
|
1 |
97012150N7 - GARDE-BOUE AVANT DNA 679 OPACO More informationQuantity required : 1 |
||||||
|
1 |
97012150R7 - GARDE BOUE AV ROUGE 894 DNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
2 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
3 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
|
4 |
SPOILER OEM PIAGGIO GILERA DNA 50-125 1998 > 2005-970124000C More informationQuantity required : 1 |
||||||
|
5 |
9701145090 - FLANC AVG NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
5 |
97011450N7 - AV. LETERALE More informationQuantity required : 1 |
||||||
|
5 |
97011450R7 - FLANC AVG ROUGE 894 DNA More informationQuantity required : 1 |
||||||
|
5 |
9701145 - LATERALE AV. More informationQuantity required : 1 |
||||||
|
5 |
97011450A3 - AV. LETERALE More informationQuantity required : 1 |
||||||
|
6 |
970115-GRILLE LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
7 |
CLIPS/PLATE OEM PIAGGIO COMMON A LA RANGE-259539 More informationQuantity required : 1 |
||||||
|
8 |
97011750A3 - FLANC AVD BLEU 280 DNA More informationQuantity required : 1 |
||||||
|
8 |
FRONT RIGHT SIDE BODY "PIAGGIO GENUINE PART" PIAGGIO GILERA 50-125 DNA RED 894 -97011750R7- More informationQuantity required : 1 |
||||||
|
8 |
9701175090 - FLANC AVD NOIR 94 DNA More informationQuantity required : 1 |
||||||
|
8 |
97011750G9 - FLANC AVD JAUNE 384 DNA More informationQuantity required : 1 |
||||||
|
8 |
97011750N7 - FLANC AVD DNA 679 OPACO DROITE More informationQuantity required : 1 |
||||||
|
9 |
970118 - GRILLE DRT More informationQuantity required : 1 |
||||||
|
10 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
11 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/3/img/139413.jpg)
12 |
CATADIOPTRE LATERAL OEM PIAGGIO 50 ZIP, VESPA LX, 50-125 LIBERTY, 250-300-400-500 MP3: GILERA 50-125 RUNNER-58231R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
13 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
||||||
|
14 |
JOINT |
