Vehicle Exploded View - GILERA DNA 180 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

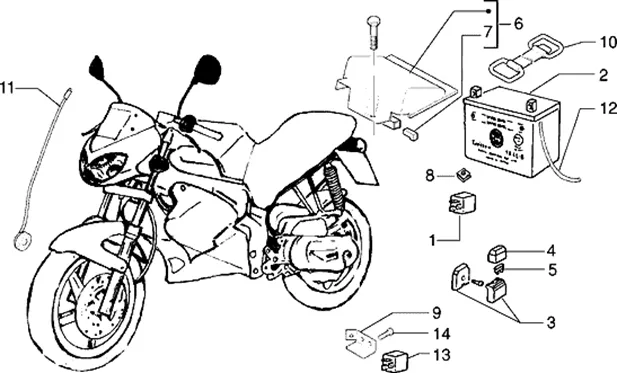

Connexions électriques : T44 BATTERIE-TÉLERUPTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/675/DNA_180_1998-2005_T44.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/8/img/67258.jpg)
1 |
RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R More informationQuantity required : 2 |
||||||
2 |
497629 - BATTERIE 12V 11A 100CCA (PB10L-B) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/0/img/67320.jpg)
2 |
BATTERY 12V 10AH OEM PIAGGIO COMMON A LA RANGE-584867 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/0/3/img/77603.jpg)
3 |
DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005, 125 VESPA PX-290402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.jpg)
4 |
COVER BOX A FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
5 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 1 |
||||||
|
6 |
COVERTURE BATTERIE |
||||||
|
7 |
Silentbloc |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
9 |
SUPPORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
10 |
BELT/SANGLE DE BATTERY OEM PIAGGIO COMMON A LA RANGE-090854 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/2/img/67052.jpg)
11 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (CODEUR) SCOOT OEM PIAGGIO 50 NRG 2006 >, 125-250-500 X9/GILERA 50-125 RUNNER, DNA-56435R More informationQuantity required : 1 |
||||||
|
12 |
580075-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
13 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
14 |
SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455 More informationQuantity required : 2 |
