Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

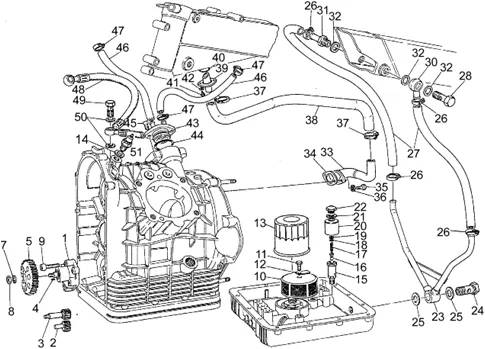

Moteur : 34.38 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_34.38.PNG)
1 |
GU30146401 - POMPE HUILE More informationQuantity required : 1 |
||||||
|
2 |
GU30148401 - ENGRENAGE POMPE HUILE More informationQuantity required : 1 |
||||||
|
3 |
GU30147801 - ENGRENAGE POMPE HUILE More informationQuantity required : 1 |
||||||
|
4 |
GU91701232 - CLAVETTE More informationQuantity required : 1 |
||||||
|
5 |
GU30147701 - ENGRENAGE POMPE HUILE More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
GU92602308-NUT More informationQuantity required : 1 |
||||||
|
9 |
AP8203590-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/1/7/img/129217.jpg)
10 |
CREPINE INTERNE/OIL FILTER OEM PIAGGIO MOTO GUZZI 1000 CALIFORNIA 1983 >, 850 LE MANS 1981, 1000 LE MANS 1983 >, 1000 SP3 1989 >, 850 T5 1985 >-GU14152200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
11 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
12 |
PLATE MAINTIEN CREPINE OIL FILTER OEM MOTO GUZZI-GU95187006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/3/1/4/0/img/103140.jpg)
13 |
OIL FILTER MOTO OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, 940 BELLAGIO 2007 >, CALIFORNIA 1100 1999 >, V11, 1200 SPORT 2006 >, NORGE 2006 >, STELVIO 2009 >-GU30153000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
14 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 1 |
||||||
|
15 |
BODY DE VALVE D'HUILE OEM PIAGGIO MOTO GUZZI BELLAGIO 940 2007 > 2013, CALIFORNIA 1100 1994 > 2012, V11 1999 > 2005-GU30158701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/1/img/126161.jpg)
16 |
PISTON DE BY-PASS OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU30150900 More informationQuantity required : 1 |
||||||
|
17 |
GU94321079-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
18 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
19 |
SPACER (6. 5X11. 5X3) OEM PIAGGIO COMMON A LA RANGE-GU30158900 More informationQuantity required : 1 |
||||||
|
20 |
GU30158800-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
21 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 1 |
||||||
|
22 |
GU30159000 - BOUCHON More informationQuantity required : 1 |
||||||
|
23 |
GU30154601 - TUYAU HUILE More informationQuantity required : 1 |
||||||
|
24 |
GU30006601 - BOUCHON HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
25 |
GASKET OF CAP DE VIDANGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU95100709 More informationQuantity required : 2 |
||||||
|
26 |
GU12157900-CLAMP More informationQuantity required : 2 |
||||||
|
27 |
TUYAU ESSENCE |
||||||
|
28 |
GU95990084-SCREW PERCEE More informationQuantity required : 1 |
||||||
|
30 |
Raccord |
||||||
|
31 |
Raccord |
||||||
|
32 |
GU10154200-GASKET More informationQuantity required : 3 |
||||||
|
33 |
GU01007200 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
34 |
GU12007600-GASKET More informationQuantity required : 1 |
||||||
|
35 |
GU98054320-SCREW M6X20 More informationQuantity required : 2 |
||||||
|
36 |
GU95120065-WASHER 6, 5X11X2 More informationQuantity required : 2 |
||||||
|
37 |
GU12157800-CLAMP More informationQuantity required : 2 |
||||||
|
38 |
GU30157400-HOSE RENIFLARD RADIATOR More informationQuantity required : 1 |
||||||
|
39 |
Raccord |
||||||
|
40 |
|
||||||
|
41 |
GU98054320-SCREW M6X20 More informationQuantity required : 2 |
||||||
|
42 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
43 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/6/img/132236.jpg)
44 |
O-RING OEM MOTO GUZZI COMMON A LA RANGE-GU90706313 More informationQuantity required : 1 |
||||||
|
45 |
GU98250820-SCREW More informationQuantity required : 2 |
||||||
|
46 |
GU00823952080-TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
||||||
|
47 |
GU93305017-CLAMP More informationQuantity required : 4 |
||||||
|
48 |
GU02153601-TUBO MANDATA OIL More informationQuantity required : 1 |
||||||
|
49 |
GU95990056-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
50 |
GASKET CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI 850 CALIFORNIA 1985 >, 1100 CALIFORNIA 1994 >, 750 V7 2008 >, NEVADA 2012 >, V9 2016 >, V11 2001 >, V100-GU10528900 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
51 |
MANOMETRE/DETECTEUR PRESSION OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU17768750 More informationQuantity required : 1 |
