Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

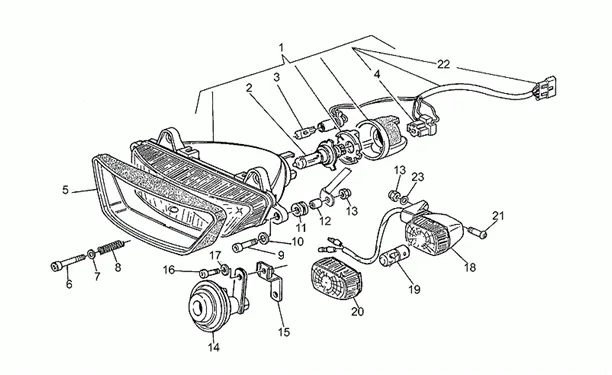

Chassis : 33.06 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.06.PNG)
1 |
Feu avant |
||||||
|
1 |
PROJECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
2 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 1 |
||||||
|
4 |
GU14756255 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
5 |
Cadre phare |
||||||
|
6 |
GU98610335-SCREW TCEI M6X18 More informationQuantity required : 1 |
||||||
|
7 |
GU95000206-WASHER More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
9 |
GU98622325-SCREW M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
10 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 2 |
||||||
|
11 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
12 |
GU91180608 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
13 |
GU92630106-NUT M6X1 More informationQuantity required : 4 |
||||||
|
14 |
Klaxon |
||||||
|
15 |
SUPPORT SIRENE |
||||||
|
16 |
GU98612316-SCREW M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
17 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 1 |
||||||
|
18 |
GU30750601 - CLIGNOTANT ARRIERE GOUCHE More informationQuantity required : 1 |
||||||
|
18 |
Clignotant arrière droit |
||||||
|
19 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
20 |
GU30753701-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
21 |
GU98230620-SCREW More informationQuantity required : 2 |
||||||
|
22 |
GU17756160 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
23 |
GU95100123-WASHER More informationQuantity required : 4 |
