Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 Daytona Racing 1000 1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

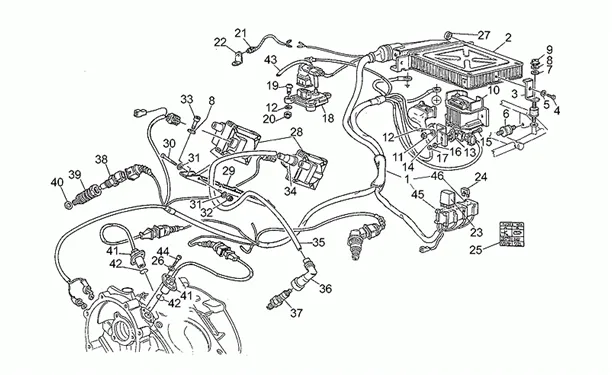

Chassis : 33.22 ALLUMAGE ÉLECTRONIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/486/Daytona_Racing_1000_1996_33.22.PNG)
1 |
|
||||||
|
2 |
CENTRALE ELECTRON |
||||||
|
3 |
Bride |
||||||
|
4 |
VIS |
||||||
|
5 |
GU29217960-WASHER 5, 9X3X0, 8 More informationQuantity required : 1 |
||||||
|
6 |
GU29737960-BLOC More informationQuantity required : 5 |
||||||
|
7 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
8 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 5 |
||||||
|
9 |
ECROU |
||||||
|
10 |
GU29724460-MODULES DE PUISSANCE More informationQuantity required : 1 |
||||||
|
11 |
GU92630106-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
12 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
13 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
|
14 |
GU30728230-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
|
15 |
GU98610110-SCREW More informationQuantity required : 2 |
||||||
|
16 |
GU95120032-WASHER More informationQuantity required : 2 |
||||||
|
17 |
GU92601003 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
GU29727061-DETECTEUR PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
19 |
SCREW FLANGE BTR (6X22) OEM PIAGGIO COMMON A LA RANGE-GU98230622 More informationQuantity required : 3 |
||||||
|
20 |
GU92630206-NUT M6X1 More informationQuantity required : 3 |
||||||
|
21 |
GU29727860 - TEMOIN COMPLET More informationQuantity required : 1 |
||||||
|
22 |
GU30732900 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
|
23 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
24 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 2 |
||||||
|
25 |
DECALCOMANIE D |
||||||
|
26 |
GU95004205-WASHER More informationQuantity required : 6 |
||||||
|
27 |
GU29729762-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
28 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
29 |
SUPPORT BOBINE ALL. |
||||||
|
30 |
|
||||||
|
31 |
GU95004204 - RONDELLE More informationQuantity required : 8 |
||||||
|
32 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
|
33 |
GU98612316-SCREW M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
34 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
35 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350 More informationQuantity required : 2 |
||||||
|
36 |
EMBOUT DE BOUGIE |
||||||
|
37 |
GU30717002 - BOUGIE NGK DR9EA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
38 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
|
39 |
Support détecteur |
||||||
|
40 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
|
41 |
Capteur phase et tours |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
42 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 2 |
||||||
|
43 |
TUYAUAERATION HUILE |
||||||
|
44 |
GU98622210-SCREW M5X10 More informationQuantity required : 4 |
||||||
|
45 |
GU30732400-BRACKET RELAIS More informationQuantity required : 2 |
||||||
|
46 |
GU30732200-BOX A FUSIBLES More informationQuantity required : 2 |
