Vehicle Exploded View - GILERA COGUAR 125
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

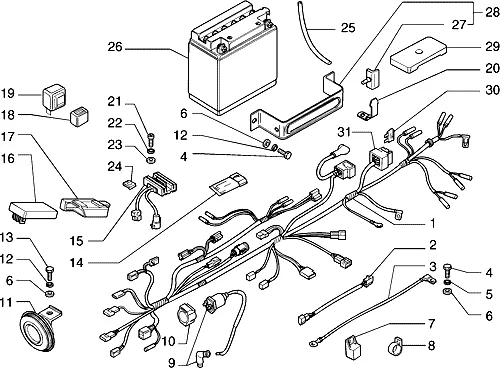

Connexions électriques : T34 DISPOSITIFS ELECTRIQUES ET BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/168/Coguar_T34.PNG)
1 |
FAISCEAU CABLES |
||||||
|
2 |
CABLE |
||||||
|
3 |
CABLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
4 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
7 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
8 |
942577-BRACKET RELAIS More informationQuantity required : 1 |
||||||
|
9 |
495558 - BOBINE More informationQuantity required : 1 |
||||||
|
10 |
SILENBLOC |
||||||
|
11 |
AVERTISSEUR |
||||||
|
11 |
AVERTISSEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
12 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
13 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099 More informationQuantity required : 1 |
||||||
|
14 |
967389 - GROUPE DIODES More informationQuantity required : 1 |
||||||
|
15 |
REGULATEUR |
||||||
|
16 |
495556 - DISPO ALLUMAGE More informationQuantity required : 1 |
||||||
|
17 |
SUPPORT ELASTIQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
18 |
BRACKET ELASTIC OEM PIAGGIO COMMON A LA RANGE-272842 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
19 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
||||||
|
19 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
||||||
|
20 |
Plaquette |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/1/img/66021.jpg)
21 |
257403 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
22 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
23 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
25 |
580977 - TUBETTO SFIATO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
26 |
BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810 More informationQuantity required : 1 |
||||||
|
27 |
SILENBLOC |
||||||
|
28 |
SUPPORT |
||||||
|
29 |
SILENBLOC |
||||||
|
30 |
495357 - FUSIBLE More informationQuantity required : 2 |
||||||
|
31 |
PORTE FUSIBLES |
