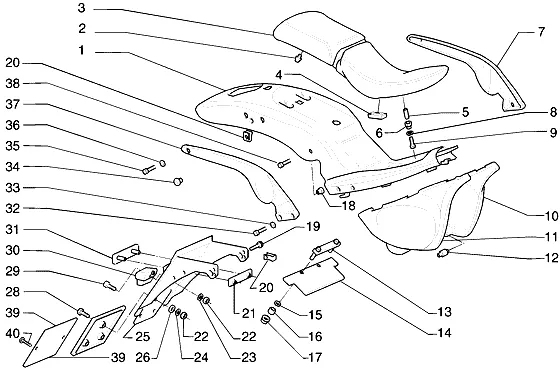

Vehicle Exploded View - GILERA COGUAR 125

	P2R reference
	Maker reference	9670965

GARDE BOUE AR BRUT

	P2R reference
	Maker reference	9670965060

G BOUE AR VERT/CREME

	P2R reference
	Maker reference	9670965090

GARDE BOUE AR NOIR

	P2R reference
	Maker reference	96709650A2

GARDE BOUE AR ORA976

	P2R reference	94028
	Maker reference	967351

BUFFER RUBBER DE STAND OEM PIAGGIO COMMON A LA RANGE-967351

	P2R reference
	Maker reference	967502

SELLE

	P2R reference
	Maker reference	967352

SILENBLOC

	P2R reference
	Maker reference	967374

ENTRETOISE

	P2R reference
	Maker reference	967237

POIGNEE AR G

	P2R reference	110672
	Maker reference	016667

016667 WASHER

	P2R reference	63775
	Maker reference	003054

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

	P2R reference
	Maker reference	9674065

CARTER G BRUT

	P2R reference
	Maker reference	9674065060

CARTER G VERT

	P2R reference
	Maker reference	9674065090

CARTER G NOIR

	P2R reference
	Maker reference	96740650A2

CARENAGE G ORANGE976

	P2R reference
	Maker reference	9670875

CARTER DT BRUT

	P2R reference
	Maker reference	9670875060

CARTER DT VERT

	P2R reference
	Maker reference	9670875090

CARTER DT NOIR

	P2R reference
	Maker reference	96708750A2

CARENAGE D ORANGE976

	P2R reference	65850
	Maker reference	1B000888

BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888

	P2R reference
	Maker reference	463646

PLAQUETTE

	P2R reference
	Maker reference	967097

PROTECTION AR

	P2R reference	110672
	Maker reference	016667

016667 WASHER

	P2R reference	65461
	Maker reference	020106

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

	P2R reference	65818
	Maker reference	195482

NUT M6 OEM PIAGGIO COMMON A LA RANGE-195482

	P2R reference
	Maker reference	967379

JOINT

	P2R reference	77031
	Maker reference	257404

257404-SCREW

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	65797
	Maker reference	181351

PLATE ELASTIC OEM PIAGGIO COMMON A LA RANGE-181351

	P2R reference	65459
	Maker reference	020104

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

	P2R reference	63775
	Maker reference	003054

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

	P2R reference	65360
	Maker reference	013763

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

	P2R reference	94008
	Maker reference	967090

967090 - BAVETTE AR

	P2R reference	65414
	Maker reference	016404

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	67322
	Maker reference	584884

DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884

	P2R reference	65408
	Maker reference	015996

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

	P2R reference	65408
	Maker reference	015996

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

	P2R reference
	Maker reference	581155

SUPPORT

	P2R reference	85566
	Maker reference	638745

CATADIOPTRE REAR OEM PIAGGIO 300-350-400-500 2014 >, 50 TYPHOON 2011 <-638745

	P2R reference
	Maker reference	068283

VIS G06828300

	P2R reference	63777
	Maker reference	003056

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

	P2R reference	78733
	Maker reference	463529

463529 - BOUCHON POUR POIGNEE

	P2R reference	67371
	Maker reference	598921

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

	P2R reference	68488
	Maker reference	709012

WASHER PLATE (8. 3X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-709012

	P2R reference
	Maker reference	967236

POIGNEE DT

	P2R reference	68436
	Maker reference	667152

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

	P2R reference
	Maker reference	291009

SUPPORT PLAQUE

	P2R reference	65712
	Maker reference	121668

SCREW CRUCIFORME (3. 5X9. 5) TARAUD OEM PIAGGIO COMMON A LA RANGE-121668
