Vehicle Exploded View - GILERA COGUAR 125 GILERA

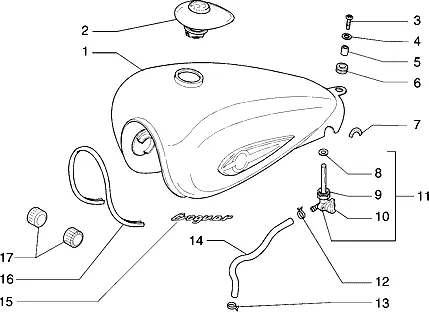

Châssis : T24 RESERVOIR CARBURANT
Reservoir carburant
Search
RESERVOIR BRUT

1
P2R reference P2R reference
Maker reference Maker reference 9674055

RESERVOIR BRUT

RESERVOIR VERT/CREME

1
P2R reference P2R reference
Maker reference Maker reference 9674055060

RESERVOIR VERT/CREME

9674055090 - RESERVOIR NOIR

1
P2R reference P2R reference 94034
Maker reference Maker reference 9674055090

9674055090 - RESERVOIR NOIR

More information

Quantity required : 1

RESERVOIR ORANGE 976

1
P2R reference P2R reference
Maker reference Maker reference 96740550A2

RESERVOIR ORANGE 976

BOUCHON RESERVOIR

2
P2R reference P2R reference
Maker reference Maker reference 967079

BOUCHON RESERVOIR

SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804

3
P2R reference P2R reference 65397
Maker reference Maker reference 0158045

SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804

More information

Quantity required : 1

016667 - RONDELLE

4
P2R reference P2R reference 110672
Maker reference Maker reference 0166675

016667 WASHER

More information

Quantity required : 1

ENTRETOISE

5
P2R reference P2R reference
Maker reference Maker reference 463182

ENTRETOISE

SILENT BLOC

6
P2R reference P2R reference
Maker reference Maker reference 463181

SILENT BLOC

DECALQUES

7
P2R reference P2R reference
Maker reference Maker reference 463642

DECALQUES

JOINT

8
P2R reference P2R reference
Maker reference Maker reference 246188

JOINT

122522 - ECROU

9
P2R reference P2R reference 74614
Maker reference Maker reference 122522

122522 - ECROU

More information

Quantity required : 1

ROBINET

10
P2R reference P2R reference
Maker reference Maker reference 297223

ROBINET

ROBINET ESSENCE

11
P2R reference P2R reference
Maker reference Maker reference 463575

ROBINET ESSENCE

HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902

12
P2R reference P2R reference 72889
Maker reference Maker reference CM002902

HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902

More information

Quantity required : 1

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

13
P2R reference P2R reference 72891
Maker reference Maker reference CM002904

HOSE CLAMP HOSE (8X11) OEM PIAGGIO COMMON A LA RANGE-CM002904

More information

Quantity required : 1

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

14
P2R reference P2R reference 65919
Maker reference Maker reference 1R000160

HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160

More information

Quantity required : 1

967412 - MONOGRAMME COGUAR G

15
P2R reference P2R reference 94036
Maker reference Maker reference 967412

967412 - MONOGRAMME COGUAR G

More information

Quantity required : 1

967413 - MONOGRAMME COGUAR

15
P2R reference P2R reference 94037
Maker reference Maker reference 967413

967413 - MONOGRAMME COGUAR

More information

Quantity required : 1

JOINT

16
P2R reference P2R reference
Maker reference Maker reference 967439

JOINT

SILENBLOC

17
P2R reference P2R reference
Maker reference Maker reference 463158

SILENBLOC
