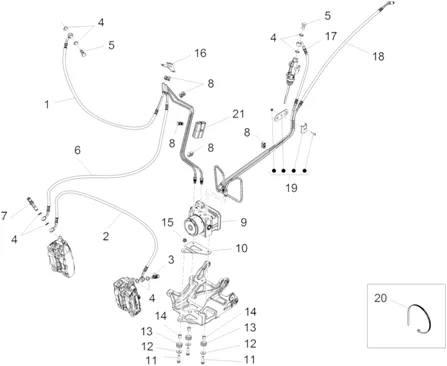

Système frein abs : 06.050 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_06.050.PNG)
1 |
2B001144-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
1 |
B045948-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
2 |
B046052-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
3 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
4 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
|
6 |
2B001145-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
6 |
B045949-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
7 |
899811-TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
8 |
CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519 More informationQuantity required : 4 |
||||||
|
9 |
2D000193-CENTRE More informationQuantity required : 1 |
||||||
|
10 |
859789-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
11 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
13 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/8/9/img/56989.jpg)
14 |
SPACER (6. 5X10X11) OEM PIAGGIO COMMON A LA RANGE-AP8221007 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
|
16 |
2B001461-BRACKET More informationQuantity required : 1 |
||||||
|
16 |
B046000-BRACKET More informationQuantity required : 1 |
||||||
|
17 |
2B001142-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
17 |
B045950-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
18 |
2B001143 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
18 |
B045951-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
19 |
860484-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
20 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
|
21 |
2B000550-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
21 |
2B001285-GUIDE-CABLE More informationQuantity required : 1 |
