Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

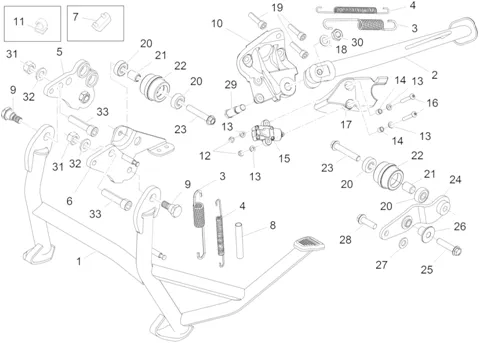

Chassis : 01.030 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_01.030.PNG)
1 |
2B001598-CENTRE STAND * More informationQuantity required : 1 |
||||||
|
1 |
B044623 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
2B000374 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
|
2 |
B044351-SIDE STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
3 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
4 |
SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211 More informationQuantity required : 1 |
||||||
|
5 |
2B001844-BRACKET More informationQuantity required : 1 |
||||||
|
5 |
B044622 - BRIDE More informationQuantity required : 1 |
||||||
|
6 |
2B001843-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
B044621-FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/3/img/67043.jpg)
7 |
BUFFER DE STAND OEM PIAGGIO 50 VESPA LX 4T, VESPA-S 4T, ZIP 4T, LIBERTY 4T, 125 VESPA LX, VESPA-S, FLY, 400-500 BEVERLY-563984 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
8 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
|
9 |
2B000652-SCREW SPECIALE More informationQuantity required : 2 |
||||||
|
10 |
B044415-PLATE STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
11 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8201727 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
13 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150177 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/8/img/139438.jpg)
15 |
INTERRUPTEUR/CONTACTEUR DE STAND OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP81278565 More informationQuantity required : 1 |
||||||
|
16 |
AP8225369-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/2/8/1/img/39281.jpg)
17 |
COVER DE BEQILLE SIDE OEM PIAGGIO APRILIA 125 RS, 1200 CAPONORD-851790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.jpg)
18 |
WASHER ELASTIC (D10. 4) OEM PIAGGIO COMMON A LA RANGE-AP8150292 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
19 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 3 |
||||||
|
20 |
AP9100175-CUSCINETTO A SFERE D8 D22 SP7 More informationQuantity required : 2 |
||||||
|
21 |
AP8161076-SPACER RULLO CATENA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/6/img/72006.jpg)
22 |
ROLLER GUIDE CHAIN OEM PIAGGIO APRILIA 750-900-1200 DORSODURO, 1200 CAPONORD, 125 RS, 850 SRV-AP8161074 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
23 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
|
24 |
B046010-FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/8/img/73578.jpg)
25 |
SCREW FLANGE TH (12X50) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI/APRILIA CAPONORD 1200 2014 > 2017-GU98682650 More informationQuantity required : 1 |
||||||
|
26 |
AP8121332-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
27 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
28 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 1 |
||||||
|
29 |
852093-SHAFT OF STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
30 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/4/img/71884.jpg)
31 |
NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-AP8150432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/3/7/img/50837.jpg)
32 |
WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101 More informationQuantity required : 3 |
||||||
|
33 |
SCREW FLANGE TH (12X50) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI/APRILIA CAPONORD 1200 2014 > 2017-GU98682650 More informationQuantity required : 2 |
