Vehicle Exploded View - APRILIA CAPONORD 1200 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

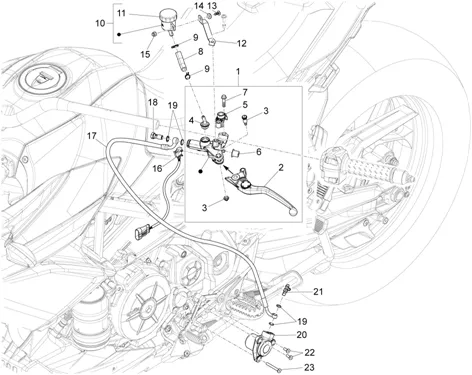

Guidon - commandes : 07.030 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/286/Caponord_1200_2014-2015_07.030.PNG)
1 |
896259-PUMP CLUTCH * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/4/img/46004.jpg)
2 |
LEVER CLUTCH OEM PIAGGIO APRILIA 1200 CAPONORD 2014 > 1200 DORSODURO 2010 >, 1000 RSV-2 1998 > 2003, 1000 TUONO 2002 > 2009-AP8113758 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/7/6/img/140976.jpg)
3 |
SCREW OF MOUNTING LEVER BRAKE/CLUTCH OEM PIAGGIO APRILIA 1000 CAPONORD, RSV-2, TUONO V2, FUTURA-2B003040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
4 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
|
5 |
AP8168501-BASE MIRROR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/1/0/img/48710.jpg)
6 |
COIFFE LEVER CLUTCH OEM PIAGGIO COMMON A LA RANGE-AP8133522 More informationQuantity required : 1 |
||||||
|
7 |
AP8213299-SCREW CALOTTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/6/img/41726.jpg)
8 |
HOSE OIL DE BOCAL OF BRAKE OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-890509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
9 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
10 |
AP8106382-TANK OIL CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
11 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
||||||
|
12 |
CLUTCH MASTER CYLINDER SUPPORT- "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 TUONO, 1200 CAPONORD -AP8134898 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-AP8150538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
14 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 1 |
||||||
|
15 |
AP8150539-DADO M5 CHIUSO More informationQuantity required : 1 |
||||||
|
16 |
B044511-INTERRUPTEUR * More informationQuantity required : 1 |
||||||
|
17 |
B045999-HOSE CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
19 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
20 |
85221R-CYLINDER More informationQuantity required : 1 |
||||||
|
21 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/6/img/70516.jpg)
22 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-874037 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/6/1/img/41361.jpg)
23 |
SCREW BTR HEAD FRAISEE (6X70) OEM PIAGGIO COMMON A LA RANGE-873268 More informationQuantity required : 1 |
