Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

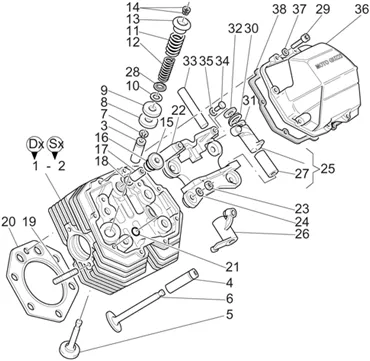

Moteur : 34.02 CULASSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_34.02.PNG)
1 |
GU03022130-TESTA CILINDRO DX. CPL. GRIGIA More informationQuantity required : 1 |
||||||
|
2 |
GU30022260-HEAD G. GIDES SOUPAPES GREY More informationQuantity required : 1 |
||||||
|
3 |
GU13036801-GUIDE-VALVE PURGE More informationQuantity required : 2 |
||||||
|
4 |
GU14036860 - GUIDE-SOUPAPE ASPIR. More informationQuantity required : 2 |
||||||
|
5 |
GU03036100 - VALVOLA SCARICO More informationQuantity required : 2 |
||||||
|
6 |
GU03036000 - VALVOLA ASPIRAZIONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/2/img/132152.JPG)
7 |
ANNEAU ELASTIC OEM MOTO GUZZI COMMON A LA RANGE 2012 <-GU90353016 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/2/img/129162.jpg)
8 |
WASHER PLATE (14. 2X31X1) OEM PIAGGIO COMMON A LA RANGE-GU13037200 More informationQuantity required : 4 |
||||||
|
9 |
GU14037300 - RONDELLE More informationQuantity required : 10 |
||||||
|
10 |
GU01038730-ROSETTA PER PIATTELLO More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/0/9/img/131809.jpg)
11 |
VALVE SPRING (EXTERNAL) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO -GU37037405 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/1/0/img/131810.jpg)
12 |
SPRING INTERNE DE VALVE OEM PIAGGIO MOTO-GUZZI 1200 BREVA, NORGE, SPORT, 940 BELLAGIO-GU37037605 More informationQuantity required : 4 |
||||||
|
13 |
GU37038005-COUPELLE UPPER More informationQuantity required : 4 |
||||||
|
14 |
GU12038100-HALF-CLAVETTE VALVE More informationQuantity required : 8 |
||||||
|
15 |
CAP OBTURATEUR USINAGE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12022600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/4/img/132224.jpg)
16 |
O-RING (20, 24X2, 62) SHAFT CLUTCH OU CAP OIL DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90706203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
17 |
NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
18 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/7/img/132817.jpg)
19 |
GU96508040-SCREW WITHOUT HEAD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/8/img/130478.jpg)
20 |
CYLINDER HEAD GASKET OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, SPORT, QUOTA, V11-GU30022060 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/8/3/7/img/125837.jpg)
21 |
GASKET OF BRACKET CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI (ENGINE 2 SOUPAPES PAR CYLINDER)-GU90706094 More informationQuantity required : 8 |
||||||
|
22 |
GU14034865-BRACKET CULBUTEUR More informationQuantity required : 2 |
||||||
|
23 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
24 |
WASHER PLATE (10. 5X21X1) OEM MOTO GUZZI COMMON A LA RANGE-GU14018400 More informationQuantity required : 10 |
||||||
|
25 |
GU03030230 - CULBUTEUR D.COMPLET More informationQuantity required : 2 |
||||||
|
26 |
GU03030430 - CULBUTEUR G.COMPLET More informationQuantity required : 2 |
||||||
|
27 |
GU91111511-BUSH 15X18X43 More informationQuantity required : 4 |
||||||
|
28 |
GU01037030-PIATTELLO INF. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/1/img/133211.jpg)
29 |
GU98692325-SCREW TCEI M6X25 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/4/7/img/132647.jpg)
30 |
SPRING DE CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU94322215 More informationQuantity required : 4 |
||||||
|
31 |
GU90118152 - RONDELLE More informationQuantity required : 8 |
||||||
|
32 |
GU10032700 - RONDELLE More informationQuantity required : 4 |
||||||
|
33 |
GU12031800 - AXE CULBUTEUR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
34 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 4 |
||||||
|
35 |
GU95120065-WASHER 6, 5X11X2 More informationQuantity required : 4 |
||||||
|
36 |
GU01023560 - COUVERCLE TETE DROIT/GAUC.GRIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
37 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/9/2/img/124692.jpg)
38 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI 2 SOUPAPES PAR CYLINDER-GU14023760 More informationQuantity required : 2 |
