Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

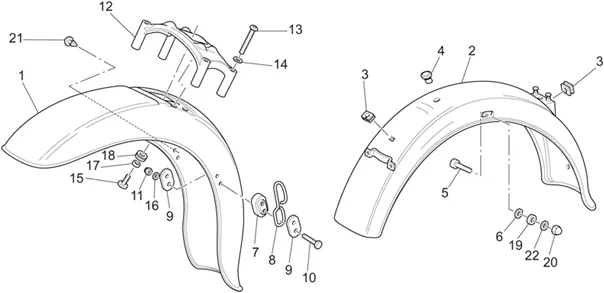

Chassis : 33.25 GARDE-BOUE AV./ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.25.PNG)
1 |
GU03434340-MUDGUARD ANT. GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU03434353-MUDGUARD ANT. NERO More informationQuantity required : 1 |
||||||
|
1 |
GU89000403-GUARD-B AV. BLACK More informationQuantity required : 1 |
||||||
|
2 |
GU03437053-MUDGUARD POST. NERO More informationQuantity required : 1 |
||||||
|
2 |
GU304370602-GUARD-MUD AR. More informationQuantity required : 1 |
||||||
|
2 |
GU89000405-GUARD-MUD REAR BLACK More informationQuantity required : 1 |
||||||
|
3 |
GU91551099-RUBBER More informationQuantity required : 2 |
||||||
|
4 |
GU93180080-CAP More informationQuantity required : 1 |
||||||
|
5 |
GU98350460 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
7 |
GU03436400-GOMMINO More informationQuantity required : 1 |
||||||
|
8 |
GU03436500-GUIDACAVO More informationQuantity required : 1 |
||||||
|
9 |
GU03436300-PIASTRINA More informationQuantity required : 2 |
||||||
|
10 |
GU98082225-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
11 |
NUT BORGNE (M5) OEM PIAGGIO COMMON A LA RANGE-GU92787205 More informationQuantity required : 2 |
||||||
|
12 |
GU03436600 - PLAQUE DE STABILISATION More informationQuantity required : 1 |
||||||
|
13 |
GU98370850 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
14 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
||||||
|
15 |
|
||||||
|
16 |
GU95000205-WASHER More informationQuantity required : 2 |
||||||
|
17 |
|
||||||
|
18 |
GU91551010-RUBBER More informationQuantity required : 4 |
||||||
|
19 |
GU03435550 - DISTANZIALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/0/6/img/69806.jpg)
20 |
860651-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/9/img/132569.jpg)
21 |
RUBBER (5MM) OEM MOTO GUZZI-GU93180072 More informationQuantity required : 2 |
||||||
|
22 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 2 |
