Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Stone Touring PI Cat 1100 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

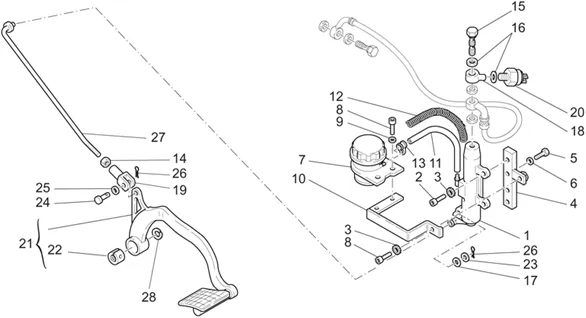

Chassis : 33.34 POMPE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/483/California_Stone_Touring_PI_Cat_1100_2003-2004_33.34.PNG)
1 |
GU31666990-MAIT. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
GU98682320-SCREW M6X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
3 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 3 |
||||||
|
4 |
GU30666760-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
5 |
GU98084412 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
7 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
8 |
GU98682310-SCREW More informationQuantity required : 2 |
||||||
|
9 |
GU95008306-WASHER 6, 4X12X1, 2 More informationQuantity required : 2 |
||||||
|
10 |
GU30666060-PLAQ. RESERV. OIL More informationQuantity required : 1 |
||||||
|
11 |
GU30666260-HOSE More informationQuantity required : 1 |
||||||
|
12 |
GU30665860 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/0/img/131930.jpg)
13 |
GU61108500-CLAMP D9 More informationQuantity required : 2 |
||||||
|
14 |
GU92609007-NUT More informationQuantity required : 1 |
||||||
|
15 |
GU95990044-SCREW PERCEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
16 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
||||||
|
17 |
GU95129131-WASHER More informationQuantity required : 1 |
||||||
|
18 |
GU19655265-FITTING More informationQuantity required : 1 |
||||||
|
19 |
GU95740175-FOURCHETTE More informationQuantity required : 1 |
||||||
|
20 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
|
21 |
Levier de frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/2/7/img/130927.jpg)
22 |
GU30678160-BUSH More informationQuantity required : 1 |
||||||
|
23 |
GU95100173-WASHER More informationQuantity required : 1 |
||||||
|
24 |
GU95780267-GOUPILLE More informationQuantity required : 1 |
||||||
|
25 |
GU95129111 - RONDELLE More informationQuantity required : 1 |
||||||
|
26 |
GU95500221-GOUPILLE More informationQuantity required : 2 |
||||||
|
27 |
GU03675170-TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
28 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 1 |
