Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring-80 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

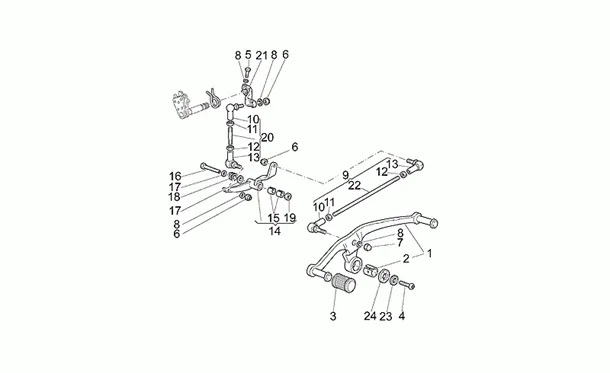

Chassis : 33.47 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1366/California_EV-EV_Touring-80_1100_2001-2002_33.47.png)
1 |
GU30250860 - LEVIER COMMANDE VITESSES CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/2/7/img/130927.jpg)
2 |
GU30678160-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.jpg)
3 |
RUBBER DE PEDALE STAND OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU13432640 More informationQuantity required : 2 |
||||||
|
4 |
GU98230817-SCREW M8X16 More informationQuantity required : 1 |
||||||
|
5 |
GU98230817 - VIS M8X16 More informationQuantity required : 1 |
||||||
|
6 |
GU92630206-NUT M6X1 More informationQuantity required : 3 |
||||||
|
7 |
GU92630707-NUT M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
8 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 5 |
||||||
|
9 |
GU03257600-TIRANTE CPL. More informationQuantity required : 1 |
||||||
|
10 |
ROTULE SELECTEUR DE BOX (G) OEM MOTO GUZZI COMMON A LA RANGE-GU32258010 More informationQuantity required : 2 |
||||||
|
11 |
GU03256800-DADO M6 More informationQuantity required : 2 |
||||||
|
12 |
GU92609206-NUT M6 More informationQuantity required : 2 |
||||||
|
13 |
ROTULE SELECTEUR DE BOX OEM MOTO GUZZI COMMON A LA RANGE-GU32258110 More informationQuantity required : 2 |
||||||
|
14 |
GU30256960-LEVER More informationQuantity required : 1 |
||||||
|
15 |
GU30252060 - BAGUE More informationQuantity required : 2 |
||||||
|
16 |
GU30252360-SCREW More informationQuantity required : 1 |
||||||
|
17 |
GU95100409 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
GU94322185-SPRING More informationQuantity required : 1 |
||||||
|
19 |
GU92602512 - ECROU BAS M12X1,25 More informationQuantity required : 1 |
||||||
|
20 |
GU03257800-SNODO SFERICO More informationQuantity required : 1 |
||||||
|
21 |
GU03258250 - LEVA More informationQuantity required : 1 |
||||||
|
22 |
GU30257760 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
23 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 1 |
||||||
|
24 |
GU03259100-RANELLA IX 1, 8X3, 9 More informationQuantity required : 1 |
