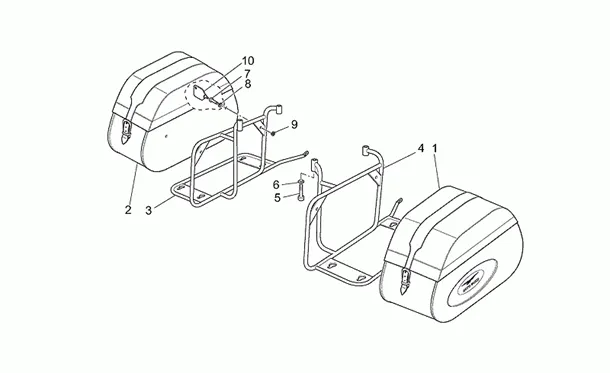

Chassis : 33.18 SACOCHES CUIR FRAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1366/California_EV-EV_Touring-80_1100_2001-2002_33.18.png)
1 |
GU03482515-VALIGIA DX More informationQuantity required : 1 |
||||||
|
2 |
GU03485715 - VALIGIA SX More informationQuantity required : 1 |
||||||
|
3 |
GU03486515-BRACKET VALIGIA SX More informationQuantity required : 1 |
||||||
|
4 |
GU03485015-BRACKET VALIGIA DX More informationQuantity required : 1 |
||||||
|
5 |
GU98690450 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
6 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
||||||
|
7 |
GU03486915-SPINOTTO More informationQuantity required : 4 |
||||||
|
8 |
GU03486315 - CHIAVETTA More informationQuantity required : 4 |
||||||
|
9 |
GU66478610-WASHER NYLON 6X17X1 More informationQuantity required : 4 |
||||||
|
10 |
GU03486315 - CHIAVETTA More informationQuantity required : 1 |
