Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV-EV Touring-80 1100 2001-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

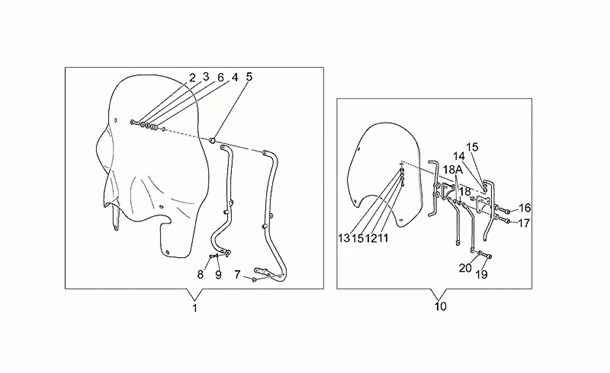

Chassis : 33.20 PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1366/California_EV-EV_Touring-80_1100_2001-2002_33.20.png)
1 |
00H00902661 - LEVIER More informationQuantity required : 1 |
||||||
|
1 |
GU03575100 - PARE-BRISE CPL.BIG More informationQuantity required : 1 |
||||||
|
2 |
GU98270620-SCREW More informationQuantity required : 6 |
||||||
|
3 |
GU03530543-ROSETTA SAGOMATA More informationQuantity required : 6 |
||||||
|
4 |
GU03530546 - SILENT BLOCK More informationQuantity required : 6 |
||||||
|
5 |
GU03530545 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
6 |
GU03530544 - RONDELLE More informationQuantity required : 6 |
||||||
|
7 |
GU03530542 - TAPPO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
8 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 2 |
||||||
|
9 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
10 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
11 |
GU98270620-SCREW More informationQuantity required : 4 |
||||||
|
12 |
GU03530543-ROSETTA SAGOMATA More informationQuantity required : 4 |
||||||
|
13 |
GU03530546 - SILENT BLOCK More informationQuantity required : 4 |
||||||
|
14 |
GU03530545 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
15 |
GU03530544 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
16 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-GU98682420 More informationQuantity required : 2 |
||||||
|
17 |
GU98622425 - VIS M8X25 More informationQuantity required : 2 |
||||||
|
18 |
GU92602408-NUT More informationQuantity required : 1 |
||||||
|
18 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 3 |
||||||
|
19 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 4 |
||||||
|
20 |
GU95000206-WASHER More informationQuantity required : 4 |
