Vehicle Exploded View - MOTO-GUZZI BREVA 850 Breva V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

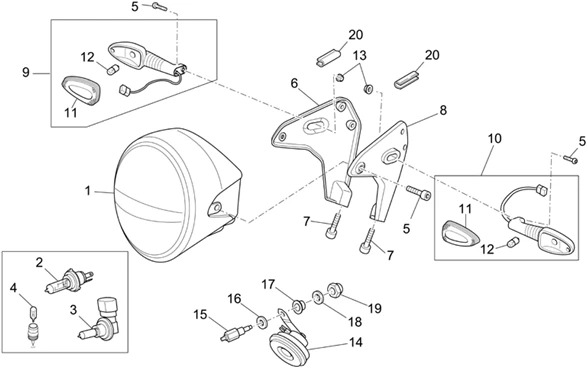

Chassis : 33.33 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/466/Breva_V_IE_850_2006-2007_33.33.PNG)
1 |
HEAD LIGHT - "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 BREVA, 1200 SPORT -GU05740530 More informationQuantity required : 1 |
||||||
|
1 |
GU05740531-HEADLAMP AV. COMPLETE LEFT More informationQuantity required : 1 |
||||||
|
2 |
AMPOULE H7 55W 12V |
||||||
|
3 |
GU93450265-LAMPE (OU AMPOULE) H9-12V-65W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
|
5 |
GU98692318-SCREW M6X18 More informationQuantity required : 4 |
||||||
|
6 |
GU05578630-BRACKET RIGHT More informationQuantity required : 1 |
||||||
|
7 |
GU98682435-SCREW M8X35 More informationQuantity required : 2 |
||||||
|
8 |
GU05578631 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/4/img/71604.jpg)
9 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/5/img/71605.jpg)
10 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE -AP817515 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/6/img/71606.jpg)
11 |
CABOCHON DE INDICATOR OEM PIAGGIO APRILIA 125-250 SPORT-CITY, 1000 CAPONORD/MOTO-GUZZI 850-1200 BREVA, NORGE-AP8127552 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
12 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
13 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
|
14 |
GU05743730 - KLAXON More informationQuantity required : 1 |
||||||
|
15 |
GU05164630 - VIS SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
16 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
17 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/2/img/132662.jpg)
18 |
WASHER PLATE (5. 2X18X1. 5) OEM PIAGGIO COMMON A LA RANGE-GU95005304 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/4/img/132564.jpg)
19 |
NUT BORGNE (M5) OEM PIAGGIO COMMON A LA RANGE-GU92787205 More informationQuantity required : 1 |
||||||
|
20 |
AP8144707-GUARNIZIONE TELAIO More informationQuantity required : 2 |
