Vehicle Exploded View - MOTO-GUZZI BREVA 850 Breva V IE 850 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

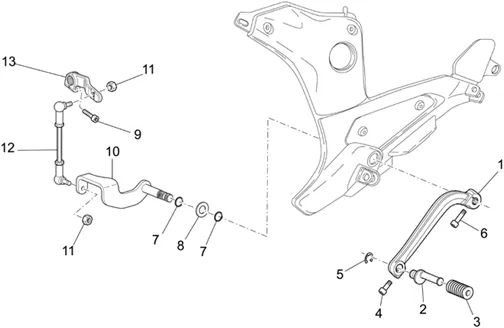

Chassis : 33.05 LEVIER BOITE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/466/Breva_V_IE_850_2006-2007_33.05.PNG)
1 |
SELECTEUR BOX OF VITESSES OEM PIAGGIO 850-1100-1200 BREVA, 850-1200 NORGE, 1200 SPORT-GU05251130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
2 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
3 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
4 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
5 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
||||||
|
6 |
GU98682320-SCREW M6X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
7 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
||||||
|
8 |
GU95008213-WASHER 12, 2X20X2 More informationQuantity required : 1 |
||||||
|
9 |
GU98682320-SCREW M6X20 More informationQuantity required : 1 |
||||||
|
10 |
GU05258230-LEVER More informationQuantity required : 1 |
||||||
|
11 |
GU92630707-NUT M6X1 More informationQuantity required : 2 |
||||||
|
12 |
GU05257830-TIRANT FOR BOX SPEED CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/6/7/5/img/128675.jpg)
13 |
LEVER (ASSOCIE AU SELECTEUR) BOX OF VITESSES OEM PIAGGIO 850-1100-1200 BREVA, 850-1200 NORGE, 1200 SPORT-GU05256930 More informationQuantity required : 1 |
