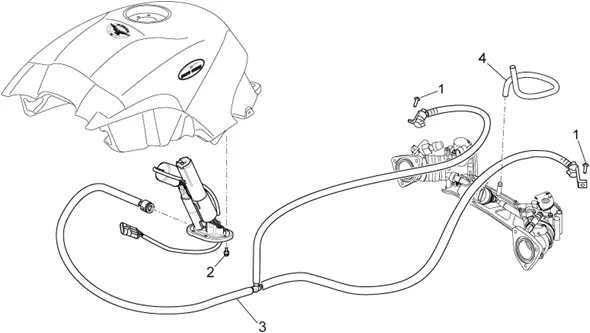

Chassis : 33.24 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/466/Breva_V_IE_850_2006-2007_33.24.PNG)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
1 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
3 |
FUEL HOSE OEM PIAGGIO MOTO-GUZZI 850-1200 BREVA, NORGE, 1200 SPORT-977149 More informationQuantity required : 1 |
||||||
|
4 |
GU05135930 - TUYAU More informationQuantity required : 1 |
