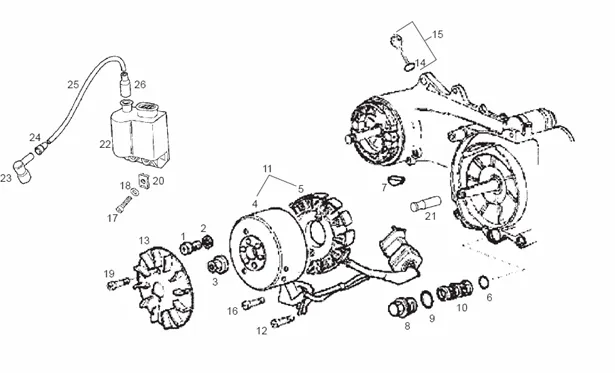

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50-100 4T E2 2004-2006 (EMEA)

	P2R reference	68770
	Maker reference	828662

SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662

	P2R reference	63837
	Maker reference	0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

	P2R reference	66210
	Maker reference	289005

NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005

	P2R reference	70947
	Maker reference	969243

ROTOR D'ALLUMAGE OEM PIAGGIO 50 FLY 4T 2006 >, LIBERTY 4T 2006 >, ZIP 4T 1998 > 2005, VESPA LX 4T 2006 >, VESPA-S 4T 2010 >, PRIMAVERA 4T 2013/APRILIA 50 SCARABEO 4T 2002 >, SPORT-CITY 4T 2008 >-969243

	P2R reference	70941
	Maker reference	969228

STATOR IGNITION SCOOTER OEM PIAGGIO 50 ZIP 4T, LIBERTY 4T, FLY 4T, VESPA LX 4T, VESPA-S 4T, VESPA PRIMAVERA 4T, VESPASPRINT 4T/APRILIA 50 SCARABEO 4T-969228

	P2R reference	66191
	Maker reference	288474

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

	P2R reference	63721
	Maker reference	0002675

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

	P2R reference	66195
	Maker reference	288548

CAP DE VIDANGE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY-288548

	P2R reference	66149
	Maker reference	285536

GASKET CAP DE VIDANGE (Ø31, 47X1, 78MM) OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO-285536

	P2R reference	66400
	Maker reference	431242

CREPINE OIL FILTER OEM PIAGGIO 50FLY 4T, LIBERTY 4T, VESPA LX 4T, VESPA-S 4T, ZIP 4T/APRILIA 50 SPORT-CITY 4T, 125 MOJITO, 125 RS, RX, SX, TUONO-431242

	P2R reference	70960
	Maker reference	9692975

IGNITION "PIAGGIO GENUINE PART" 50 FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, LXV, PRIMAVERA, SPRINT, S 4 STROKE -9692975-

	P2R reference	65383
	Maker reference	0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

	P2R reference	69196
	Maker reference	841645

841645 - VENTILATEUR

	P2R reference	160626
	Maker reference	1A011563

TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA-S 4T, VESPA SPRINT 4T/APRILIA 50 SR MOTARD 4T, SCARABEO 4T-1A011563

	P2R reference	68643
	Maker reference	827085

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

	P2R reference	68991
	Maker reference	832130

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

	P2R reference	65399
	Maker reference	0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	66655
	Maker reference	484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	66643
	Maker reference	483785

PIVOT SPRING DE STAND OEM PIAGGIO COMMON A LA RANGE-483785

	P2R reference	70998
	Maker reference	969896

BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 100 ZIP 4T 2000 >/APRILIA 100 SCARABEO 4T 2001 > 2005 (DUCATI)-969896

	P2R reference	67864
	Maker reference	6399786

BOBINE IGNITION OEM PIAGGIO 50 FLY 4T 2005 >, LIBERTY 4T 2005 >, VESPA LX 4T 2005 >, VESPA ET4 1998 > 2005/APRILIA 50 SCARABEO 4T 2002 >-6399786

	P2R reference	70969
	Maker reference	969348

ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348

	P2R reference	68750
	Maker reference	828339

GUIDE CABLE HT OEM PIAGGIO COMMON A LA RANGE-828339

	P2R reference	65668
	Maker reference	0803415

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

	P2R reference	65966
	Maker reference	231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571
